Product Overview

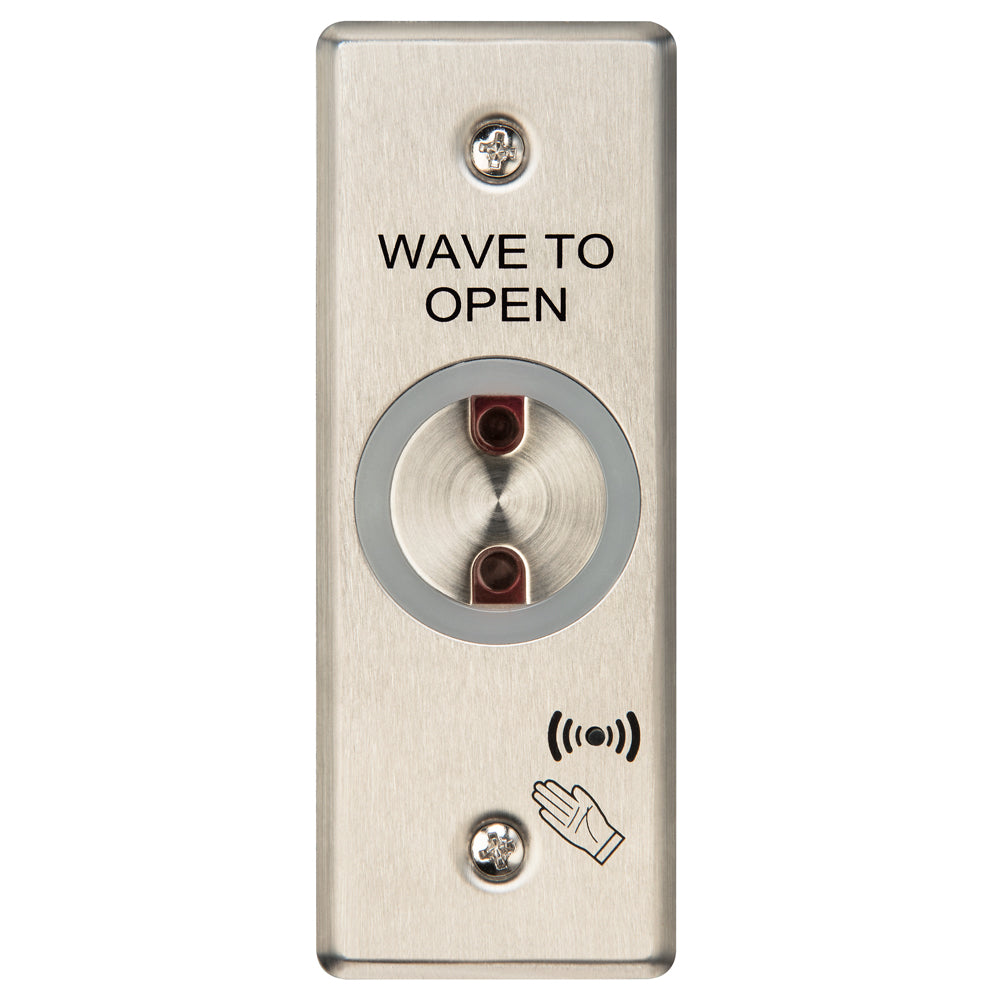

Norton 704 Narrow Wave-to-Open Wall Switch
Easy Door Upgrade to Hands-Free Operation
For a more modern approach, Wave-to-Open switches coupled with Norton low energy operators allow building occupants to easily move through a space without transference of germs or leaving messy fingerprints behind. The highly sensitive programming of the Wave-to-Open Switch picks-up hand gestures within four inches, ensuring it triggers operation only when intended.
From bathrooms and building entrances to all sorts of openings throughout grade schools, college campuses, hospitals, and offices, these touch-less door opening solutions provide a healthy means for meeting ADA requirements.
- Infrared technology
- Narrow gang
- Input Voltage: 12V to 24VDC
- SPDT Contact Rating: 2A @30VAC/VDC
- Sensor Detection Range: Up to 4" (101mm)
- Sensor requires movement for activation
- Variable relay - hold time from 0-35 seconds
- Range 0" to 4"
- Durable stainless steel body holds up in moist environments
Compatible Operators
| Brand | |
|---|---|
| Part Type |
Actuator / Door Switch, Touchless Sensor |
| Size |
Face Plate: 1-3/4" (44.5mm.) Width x 4-1/2" (115mm.) Height, Supplied Conduit Housing: 1-3/8" (34.9mm.) Width x 4-1/2" (115mm) Height |
| Finish |
Stainless Steel |
