Product Overview

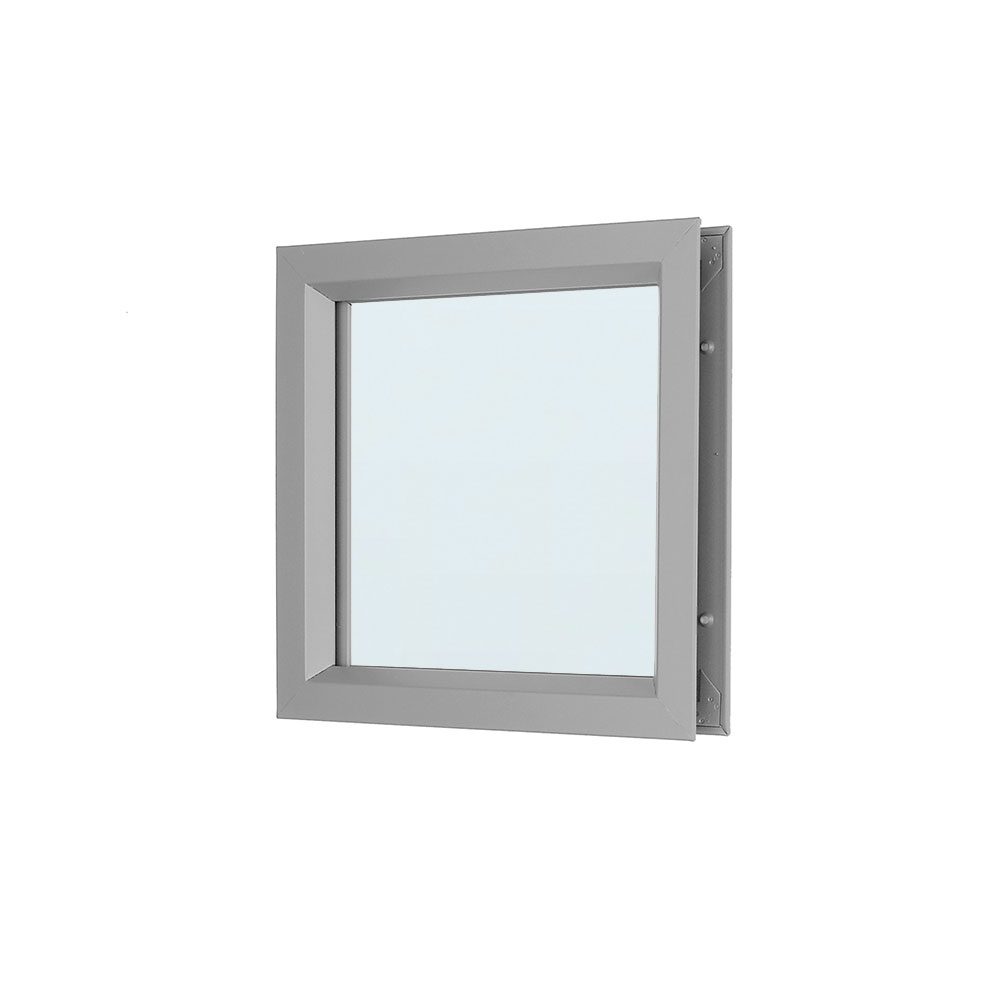

National Guard Products L-FRA100 Low Profile Lite Kit for 1-3/4" Thick Doors with Laminated Glass and Glazing Tape
- Mitered and welded corners with countersunk mounting holes

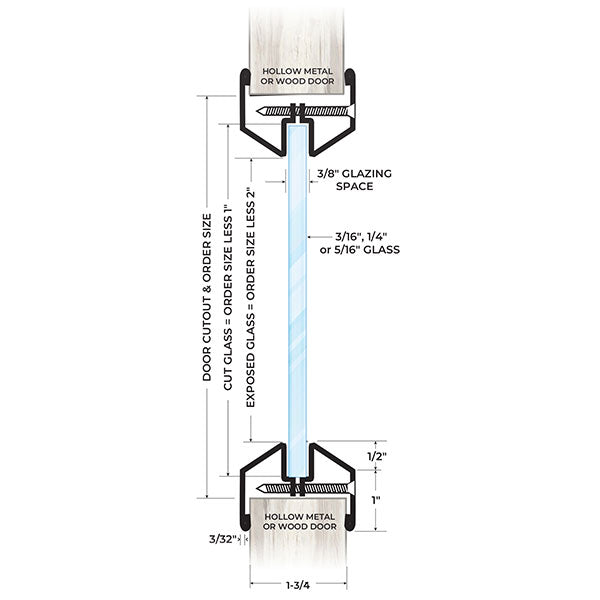

- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Includes 1/4″ thick clear laminated CAT II impact-rated glass (comprised of two plies of 1/4″ glass and a .030″ PVB interlayer)
- Glass meets the requirement of ASTM C 1172 Standard Specification for Laminated Architectural Flat Glass and the safety criteria of CPSC 16 CFR 1201, Category II; and ANSI Z97.1, Class A
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
| Brand | |
|---|---|
| Finishes |
DKB - Dark Bronze, W - White, MBL - Matte Black, GPZ - Gray Primer, BPR - Beige Primer |
| Order Size |
12" x 12", 24" x 60", 24" x 64", 5" x 35", 6" x 27", 7" x 22", 8" x 32", 24" x 24", 24" x 30", 24" x 32", 24" x 36" |
| Fire-Rating |
None |
| Glass Type |
Clear Laminated Glass |
| Glass Appearance |
Clear |
| Glass Thickness |
1/4" |
| Glass STC Rating |
35 |
| Frame Profile |
Low |
| Frame Construction |
18 Gauge Cold Rolled Steel |
| Frame Fasteners |
#8 x 1" Flathead Phillips SMS - Included |
| Glass Impact Safety Rating |
ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II |
| Door Thickness |
1-3/4" |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
