Rockwood

Rockwood LT-B1 Vision Lite Kit Pack with Galvannealed Frame and 1/4″ Clear Laminated Safety Glass

$200.39
Usually Ships:  3-5 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes clear impact-rated laminated glass
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

Rockwood LT-B1 LAM Complete Lite Kit Pack - Beveled Lite Frame, 1/4" Clear Laminated Glass, and Glazing Tape - for 1-3/4" Thick Doors, Galvannealed Steel Frame

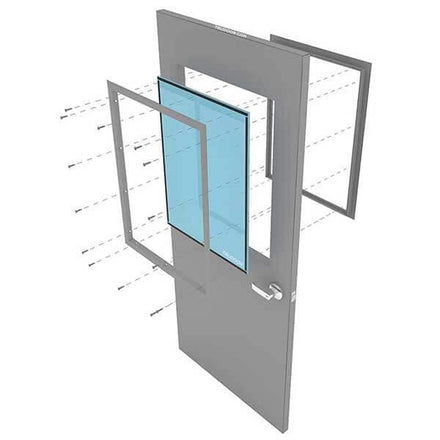

The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

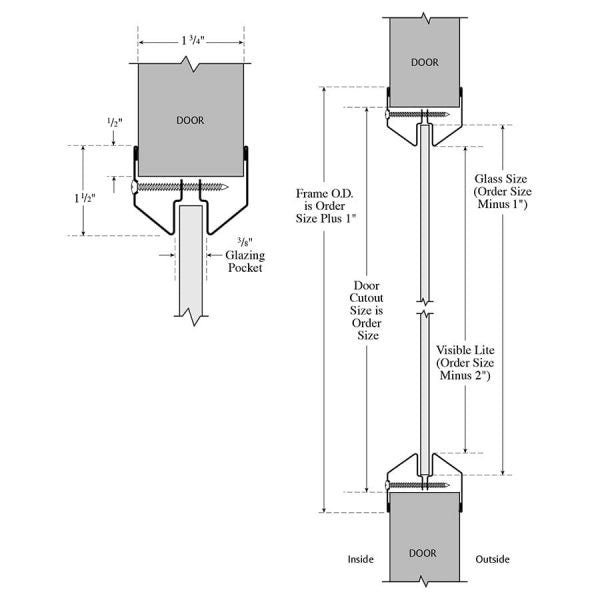

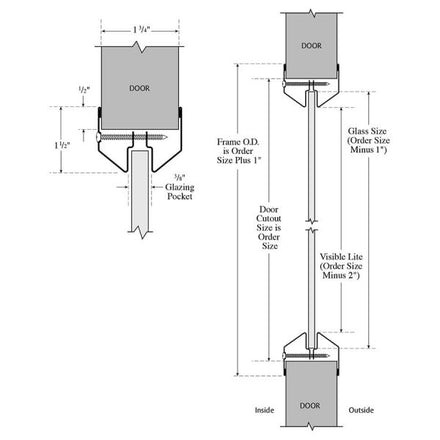

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes 1/4″ thick clear laminated CAT II impact-rated glass (comprised of two plies of 1/4" glass and a .030" PVB interlayer)
  • Glass meets the requirement of ASTM C 1172 Standard Specification for Laminated Architectural Flat Glass and the safety criteria of CPSC 16 CFR 1201, Category II; and ANSI Z97.1, Class A
  • Includes glazing tape
  • 20 gauge galvannealed steel frame

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

BSP Black Suede Powder Coat, WSP White Suede Powder Coat, Beige Powder Coat, Gray Primer Powder Coat, Dark Bronze Duranodic Powder Coat

Frame Construction

20 Gauge Galvannealed Steel

Frame Fasteners

#8 x 1-3/4" Phillips head SMS

Glass Type

Clear Laminated Glass

Glass Appearance

Clear

Glass Thickness

1/4"

Glass STC Rating

35

Glass Approvals

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Fire-Rating

None

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
