Product Overview

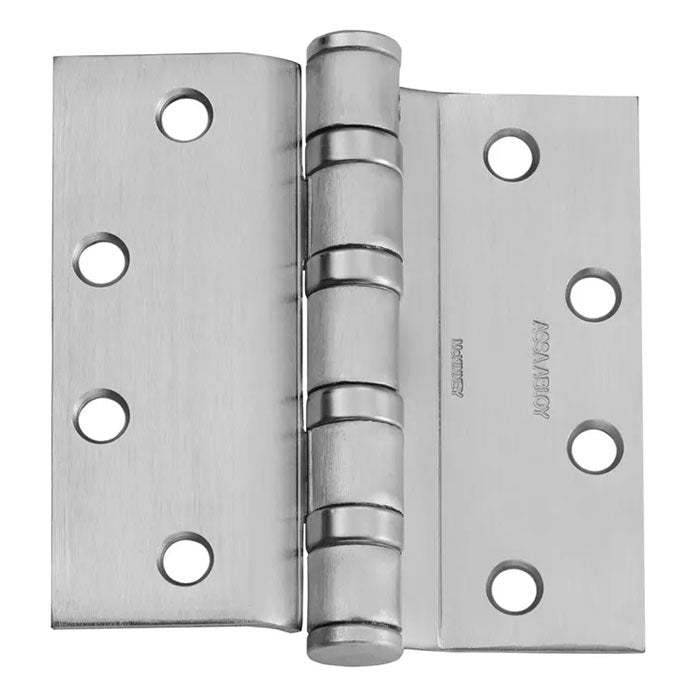

McKinney RBT4A3786 4-1/2 x 4-1/2 Full Mortise Heavy Weight 5 Knuckle Bearing Hinge, Raised Barrel, Square Corner
The RB-T4A3786 (steel) raised barrel full mortise heavy weight hinges are reversible and recommended for use on high frequency and/or heavy wood or metal doors where the door is set in a deep revealed frame.
Features
- For use where the door is set in a deep reveal
- Heavy weight - for use on all extra heavy and/or high frequency doors
- Supplied with a no hole bottom plug
- Pin is held in place by an NRP set screw
- Door leaf mortised into door
Benefits
- Frame leaf may be mortised or surface applied
- Reversible
| Brand | |
|---|---|
| Finishes |
652 Satin Chrome |
| Size |
4.5" x 4.5" |
| Hinge Type |
Full Mortise |
| Knuckles |
Five |
| Bearings |
Oil Impregnated Bearing |
| Gauge |
0 .180 |
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156 .1 |
| Fire-Rating |
Certified to meet UL standards (3hr) |
| Fasteners |
Packed with wood and metal screws |
