Product Overview

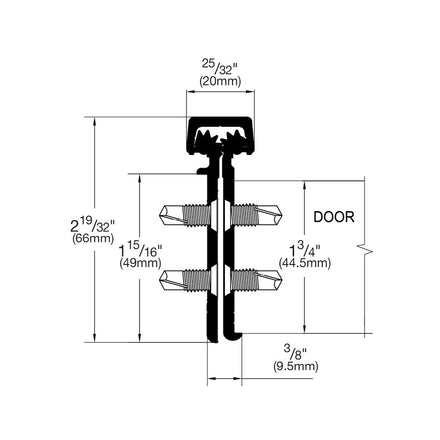

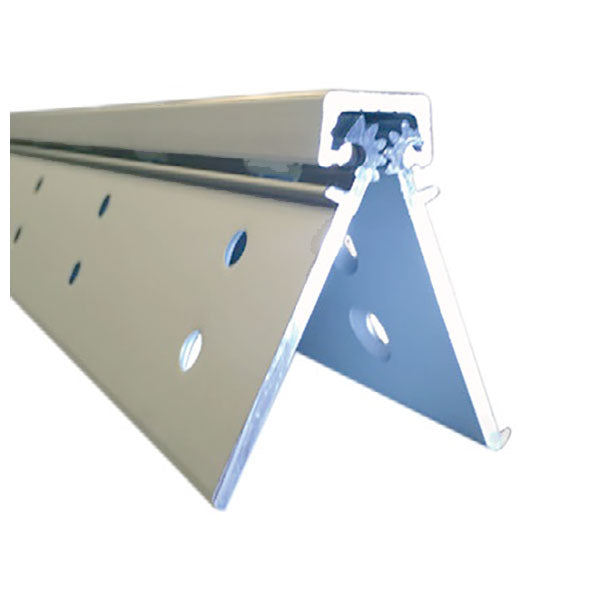

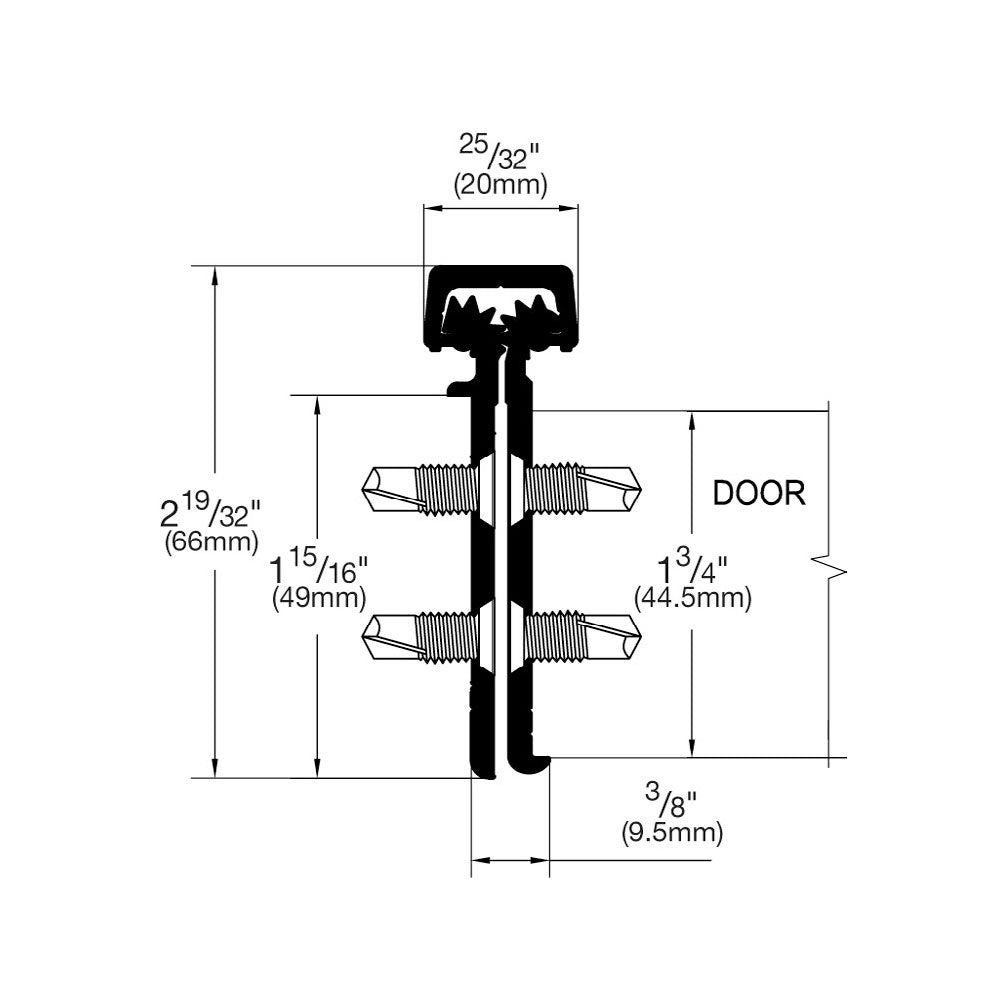

Doormerica CH88-2240HD Heavy Duty Full Mortise Continuous Gear Hinge
Doormerica offers quality hardware for commercial applications at an affordable price.
- Concealed/mortise leaf
- May be used with any door material
- Heavy-duty for high-frequency 1 3/4" doors or heavy medium-frequency doors up to 450 lbs.
- For new construction
- For renovation with new door and/or frames
- No mortising of doors or frame required
- Will cover hinge cut-outs in frames
- Flush mount, no inset
- Frame and door leaf alignment ribs for proper hinge location
| Brand | |
|---|---|
| Length |
83" (for 7'0" door), 95" (for 8'0" door) |
| Usage |
Heavy Duty |
| Continuous Hinge Type |
Full Mortise (Concealed) |
| Finishes |
Clear Anodized Aluminum, Dark Bronze Anodized Aluminum, Black Anodized Aluminum |
| Door Applications |
1-3/4″ Thick Doors |
