Select SL24 HD600 Heavy Duty Concealed Geared Continuous Hinge

$153.04
Usually Ships:  2-3 Business Days

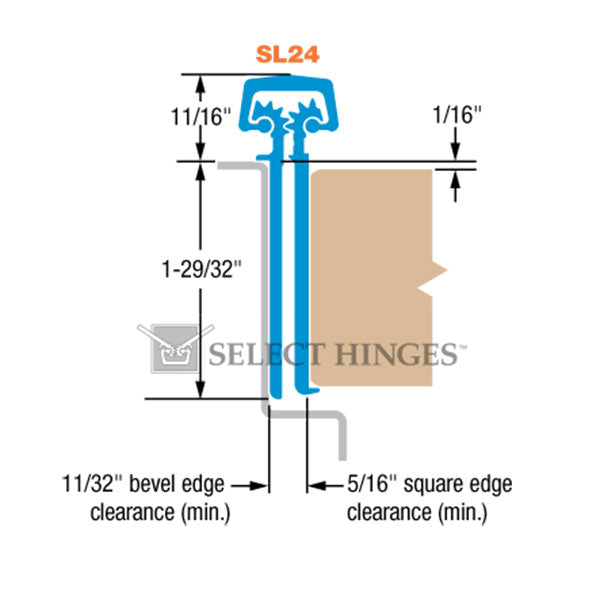

  • 1/16" door inset, for 1-3/4" thick door
  • Frame leaf covers butt hinge preps
  • Supports weights up to 600lbs

Available Options:

Clear

Product Overview

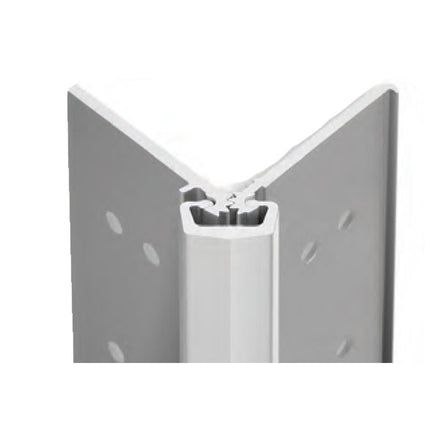

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

  • Door edge protector.
  • Frame leaf covers butt hinge preps.
  • 1/16"door inset. For 1-3/4" doors.
  • SL24 HD600 geared continuous hinges are BHMA Grade 1 certified.
  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Dark Bronze Anodized Aluminum, Black Anodized Aluminum, Clear Anodized Aluminum

Length

83" (for 7'0" door), 79" (for 6'8" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

Load / Frequency

For 1-3/4" doors, 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Heavy Duty 600 — For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.

ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1

Fire-Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost

Continuous Hinge Type

Full Mortise (Concealed)

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy American Act - Made in USA
