Product Overview

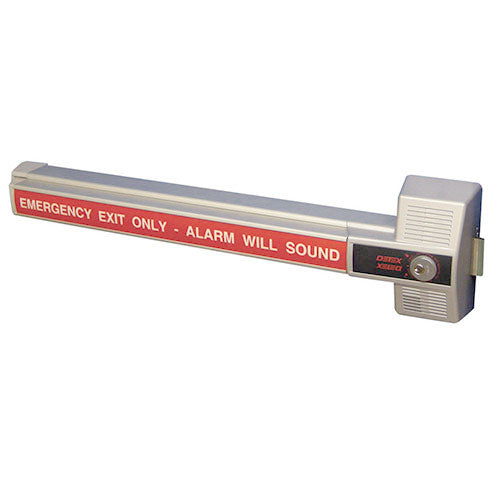

Detex ECL-230X Alarmed Deadbolt Panic Hardware, Single Point Lock, Gray
The ECL-230X is a code compliant, battery alarmed, rugged dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits.
- Attack resistant design for maximum holding force
- Proven durability and reliability at a reasonable price
- Time tested construction resists attack from the inside
- Durable photo-luminescent sign absorbs light to then “glow in the dark” when lights are dimmed
- Surface/flush reversible strike
- Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
- UL 305 Listed Panic Hardware
- 100 decibel alarm, powered by9-volt battery (included)
- Rim Cylinder Required (sold separately)
| Brand | |
|---|---|
| Finish |
Gray |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Handing |
Non-Handed |
| Power |
Long-life 9V battery (included) |
| Deadbolt |
Dead bolt lock -1” throw with just over 3/4” engagement with the frame |
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |
| Door Width |
36" to 48" |
| Door Thickness |
1-3/4" to 2-1/4" |
| Door Applications |
Metal or Wood Doors |
