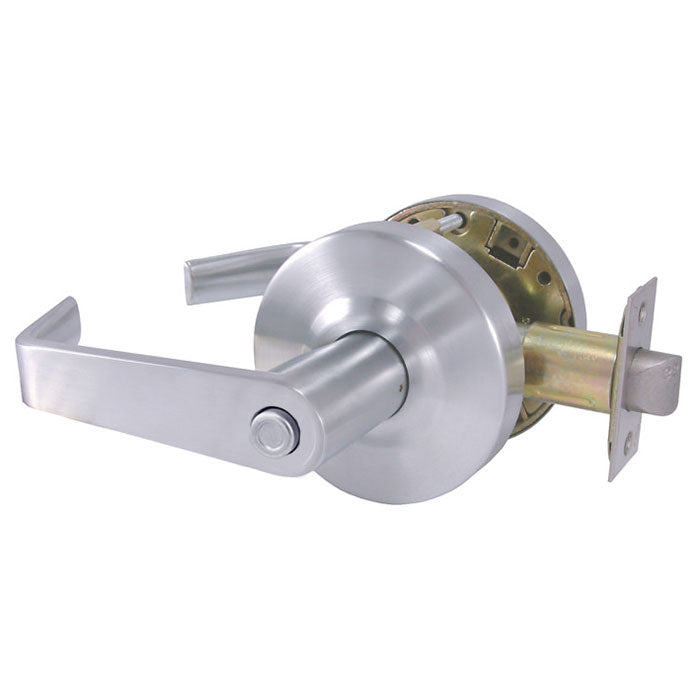

Design Hardware X-76-F Privacy Lever Lock, Flat Lever

$80.17
Usually Ships:  3-5 Business Days
  • Meets ANSI A156.2, Series 4000, Grade 1 Standards
  • ANSI function: F76, ideal for restroom doors
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Design Hardware X-76-F Lever Lockset, Privacy Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-76 Privacy - ANSI Function F76 - Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever or closing door.

  • Clutching levers standard for Vandal resistance on locking functions
  • Factory Set for 1-3/4" thick doors – can be adjusted to fit 1-3/8" to 2" thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Finishes

US19 Matte Black, US10B (613) Oil Rubbed Bronze, US15 (619) Satin Nickel, US26D (626) Satin Chrome, 316SS-US32D Marine Grade Satin Stainless Steel, US4 (606) Satin Brass, US3 (605) Bright Brass

Usage

Heavy Duty

ANSI Grade

Meets ANSI - A156.2, Series 4000, Grade 1 Standards

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Lock Function

Privacy

Backset

2-3/4"

Latch

1/2" throw - 1" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

F - Flat

Handing

Non Handed – Completely Reversible

Fasteners

Combination screws for wood or metal doors & frames
