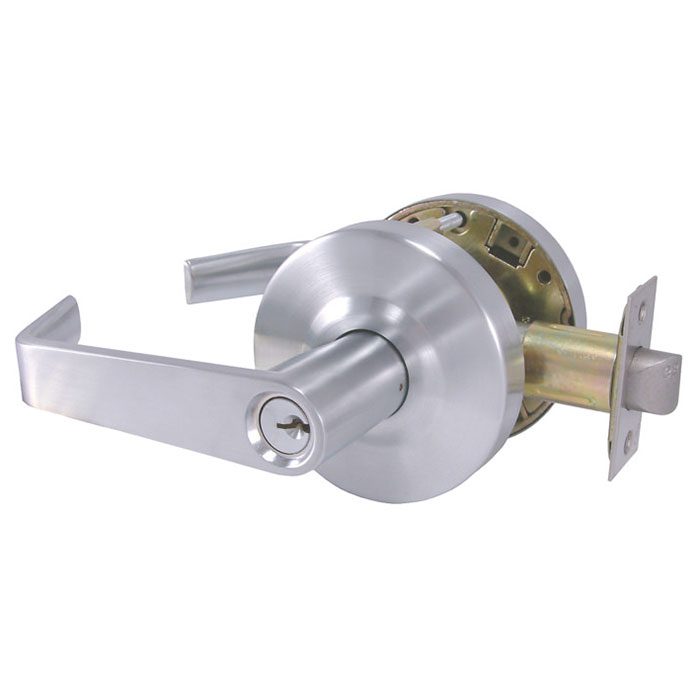

Design Hardware X-86-F Storeroom Lever Lock, Flat Lever

$82.65

Usually Ships: 3-5 Business Days

Available Options:

Finish

Quantity:

Added to Cart

Design Hardware X-86-F Lever Lockset, Storeroom Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-86 Storeroom - ANSI Function F86 - Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.

Clutching levers standard for Vandal resistance on locking functions
Factory Set for 1-3/4" thick doors – can be adjusted to fit 1-3/8" to 2" thick doors
Best for medium to high traffic
Designed for fast and easy installation

Specifications

Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch

Brand	Design Hardware
Finishes	316SS-US32D Marine Grade Satin Stainless Steel, US26D (626) Satin Chrome, US19 Matte Black, US4 (606) Satin Brass, US15 (619) Satin Nickel, US3 (605) Bright Brass, US10B (613) Oil Rubbed Bronze
Usage	Heavy Duty
ANSI Grade	Meets ANSI - A156.2, Series 4000, Grade 1 Standards
Fire-Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Lock Function	Storeroom
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Backset	2-3/4"
Latch	1/2" throw - 1" x 2-1/4" face
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non Handed – Completely Reversible
Lever Design	F - Flat
Fasteners	Combination screws for wood or metal doors & frames
