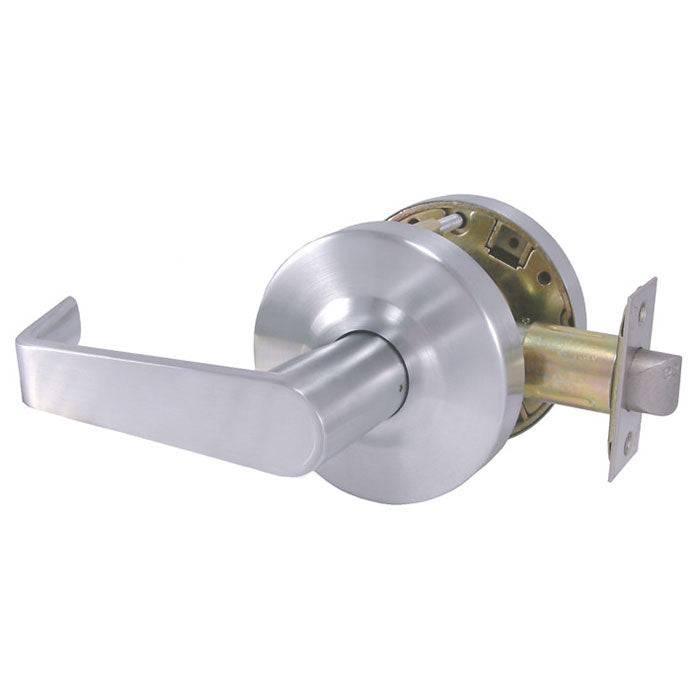

Design Hardware X-61-F Connecting Room/Exit Latch, Flat Lever

$77.41
Usually Ships:  3-5 Business Days
  • Meets ANSI A156.2, Series 4000, Grade 1 Standards
  • ANSI function: F61, lever always open, blank plate outside
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Design Hardware X-61-F Lever Lockset, Connecting Room/Exit Latch Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-61 Passage - ANSI Function F61 - Deadlocking latchbolt operated by lever from inside only. Blank plate outside.

  • Factory Set for 1-3/4" thick doors – can be adjusted to fit 1-3/8" to 2" thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Finishes

316SS-US32D Marine Grade Satin Stainless Steel, US3 (605) Bright Brass, US10B (613) Oil Rubbed Bronze, US15 (619) Satin Nickel, US26D (626) Satin Chrome, US4 (606) Satin Brass

Usage

Heavy Duty

ANSI Grade

Meets ANSI - A156.2, Series 4000, Grade 1 Standards

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Lock Function

Exit / Communicating

Latch

1/2" throw - 1" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

F - Flat

Handing

Non Handed – Completely Reversible

Fasteners

Combination screws for wood or metal doors & frames
