Corbin Russwin CL3310 NZD Extra Heavy Duty Passage Lever Set

$384.57

Usually Ships: 1-2 Business Days

Extra Heavy Duty, BHMA/ANSI Grade 1 Certified
Discontinued December 31, 2023 available while supplies last
Replaced by CLX3310 NZD

Available Options:

Clear

Finish

Quantity:

Added to Cart

Available while supplies last (No returns allowed)

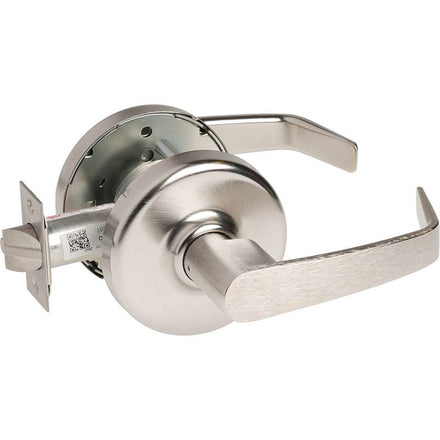

Corbin Russwin CL3310 Grade 1 Cylindrical Lock, Passage/Closet Function, NZD Newport Lever

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability, and quiet operation. The CL3300 series subtly complements any high-use commercial, industrial and institutional application.

ANSI/BHMA Grade 1 certified
UL-cUL listed for 3-hour fire doors and windstorm applications
EZ-Install components significantly reduce installation time
Independent return springs prevent lever sag
Thru-bolted cylindrical chassis prevents rotation and ensures proper alignment
Covers ANSI/DHI Door Prep A115.18

ANSI F75 Passage or Closet

Latchbolt by lever either side
Both levers always free

Applications

Schools & Universities
Hospitals
Corporate campuses
Government/Municipal Buildings
Commercial Buildings

codes

Brand	Corbin Russwin
Finishes	626 Satin Chrome, 613 Oil Rubbed Bronze
Lock Function	Passage

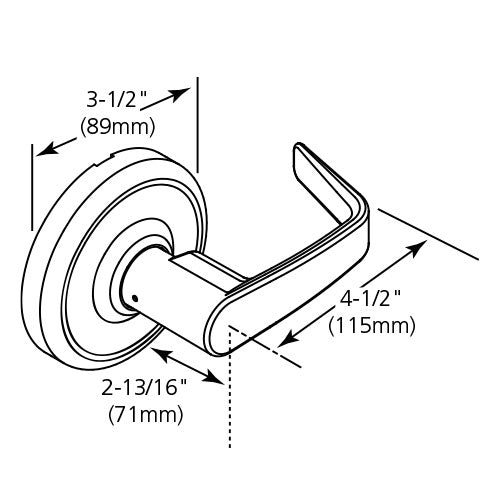

Lever Design	NZD (Newport)
Usage	Heavy Duty
ANSI/BHMA Standard	Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	Fire Rated - UL10C - Positive Pressure
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Latch	1/2" throw - 1-1/8" x 2-1/4" face
Handing	Non-Handed
Door Thickness	1-3/4" to 2"
Warranty	7 Year
