Corbin Russwin CL3320 NZD Extra Heavy Duty Privacy Lever Lockset

$458.34

Usually Ships: 1-2 Business Days

Extra Heavy Duty, BHMA/ANSI Grade 1 Certified
Discontinued December 31, 2023 available while supplies last
Replaced by CLX3320 NZD

Available Options:

Clear

Finish

Quantity:

Added to Cart

Available while supplies last (No returns allowed)

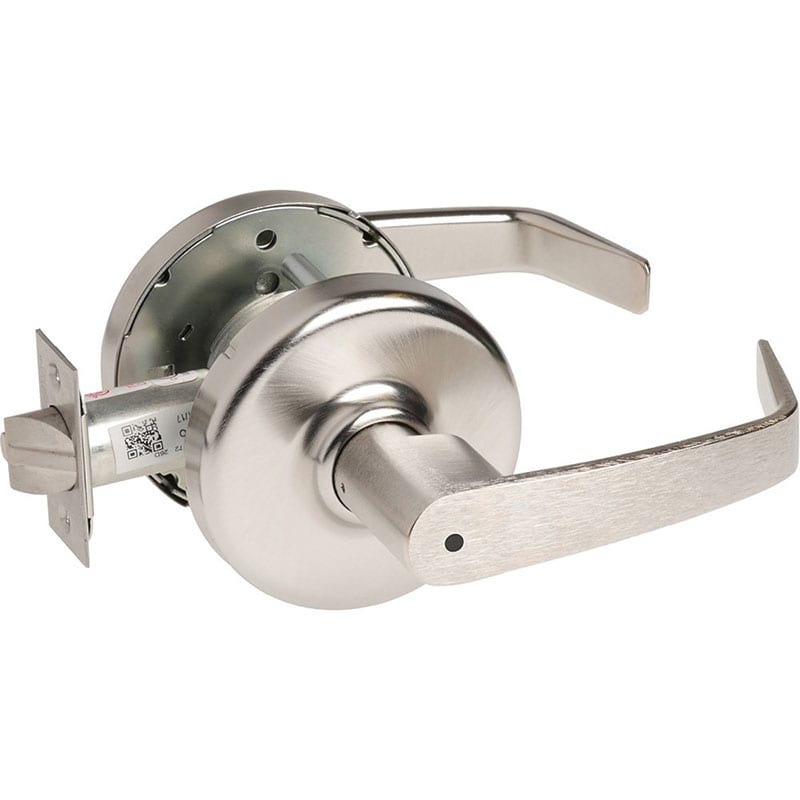

Corbin Russwin CL3320 Grade 1 Cylindrical Lock, Privacy Function, NZD Newport Lever

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 series subtly complements any high-use commercial, industrial and institutional application.

ANSI/BHMA Grade 1 certified
UL-cUL listed for 3-hour fire doors and windstorm applications
EZ-Install components significantly reduce installation time
Independent return springs prevent lever sag
Thru-bolted cylindrical chassis prevents rotation and ensures proper alignment
Covers ANSI/DHI Door Prep A115.18

ANSI F76A Privacy, Bedroom, or Bathroom

Throw-off latchbolt by lever
Outside lever locked by push button. (Lever handle is freewheeling in locked position)
Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door
Inside lever always free

Applications

Schools & Universities
Hospitals
Corporate campuses
Government/Municipal Buildings
Commercial Buildings

codes

Brand	Corbin Russwin
Finishes	626 Satin Chrome, 613 Oil Rubbed Bronze
Lock Function	Privacy

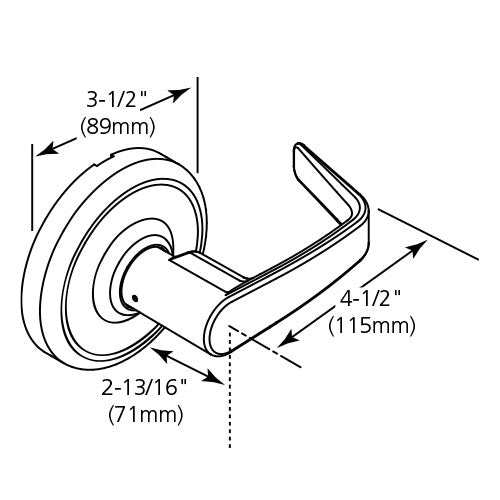

Lever Design	NZD (Newport)
Usage	Heavy Duty
ANSI/BHMA Standard	Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	Fire Rated - UL10C - Positive Pressure
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Latch	1/2" throw - 1-1/8" x 2-1/4" face
Handing	Non-Handed
Door Thickness	1-3/4" to 2"
Warranty	7 Year
