Cal-Royal

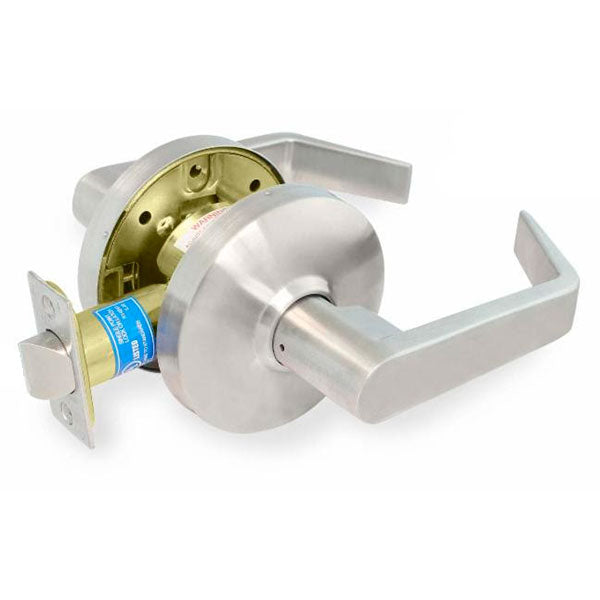

Cal-Royal GN30 Passage Lever Set

$116.43
Usually Ships:  2-3 Business Days
  • Heavy-Duty, BHMA/ANSI Grade 1 certified
  • Both levers always unlocked
  • ADA compliant, 3 hour fire-rated

Available Options:

Clear

Product Overview

Cal-Royal Genesys Series, GN30 Passage Lever Lock

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings

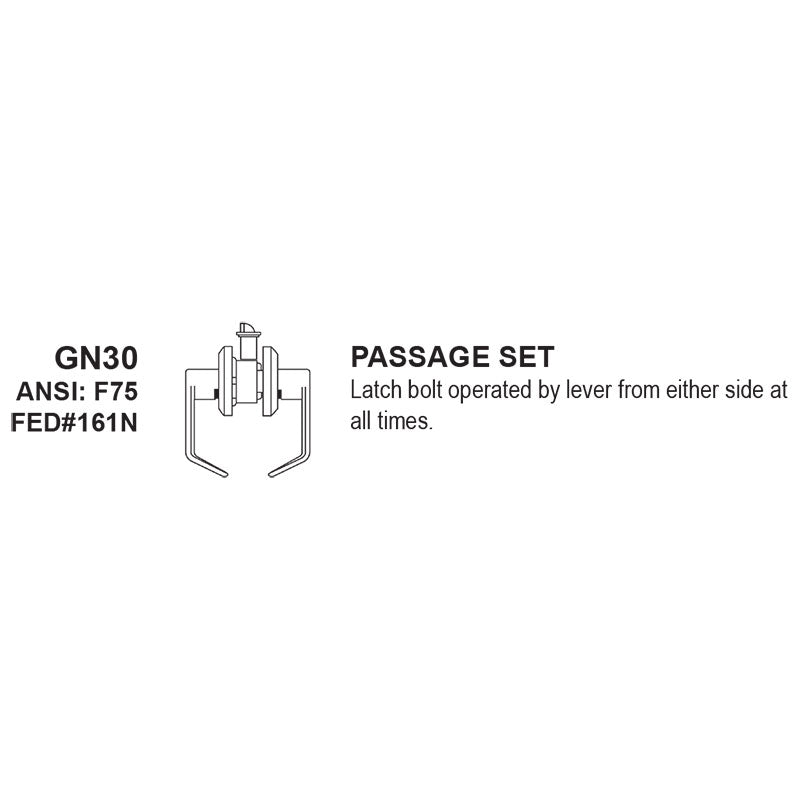

ANSI Function F75 – Keyless – Latch bolt by levers at all times.

  • Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
  • Heavy-duty cylindrical leversets
  • Fixed thru bolt installation
  • ADA Compliant

codes

Brand

Finishes

US26D (626) Satin Chrome, US4 (606) Satin Brass, US1 (622) Flat Black, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

Lock Function

Passage

ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1

Usage

Heavy Duty

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL/cUL listed up to 3 Hours

Warranty

Limited Lifetime Warranty
