Cal-Royal

Cal-Royal A9800 x CRCODE007 Panic Rim Exit Device with Electronic Keypad Lever Trim

$835.55
Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes CRCODE007 keypad trim with key override
  • Can store up to 90 different numeric user codes in 4, 5 or 6 digits

Available Options:

Clear

Product Overview

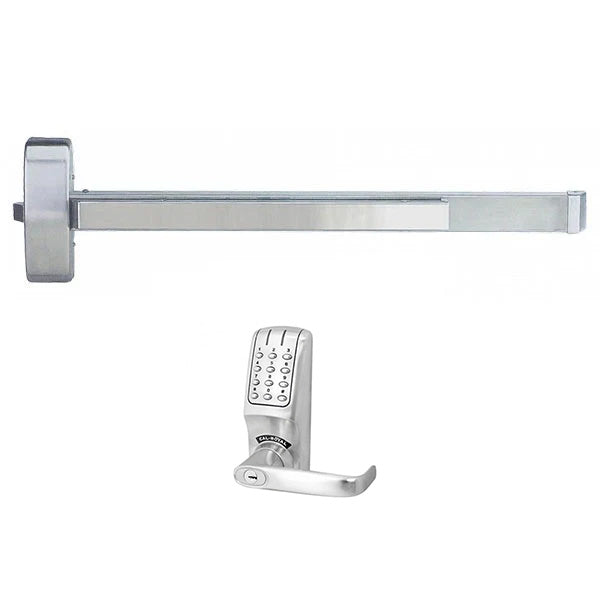

Cal-Royal A9800 ADA Series Grade-1 Rim Exit Device with CRCODE007 Electronic Keypad Lever Trim

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever.

  • Default Function: Storeroom, Optional Function: Passage Mode
  • UL and ULC Listed: Panic rated
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force

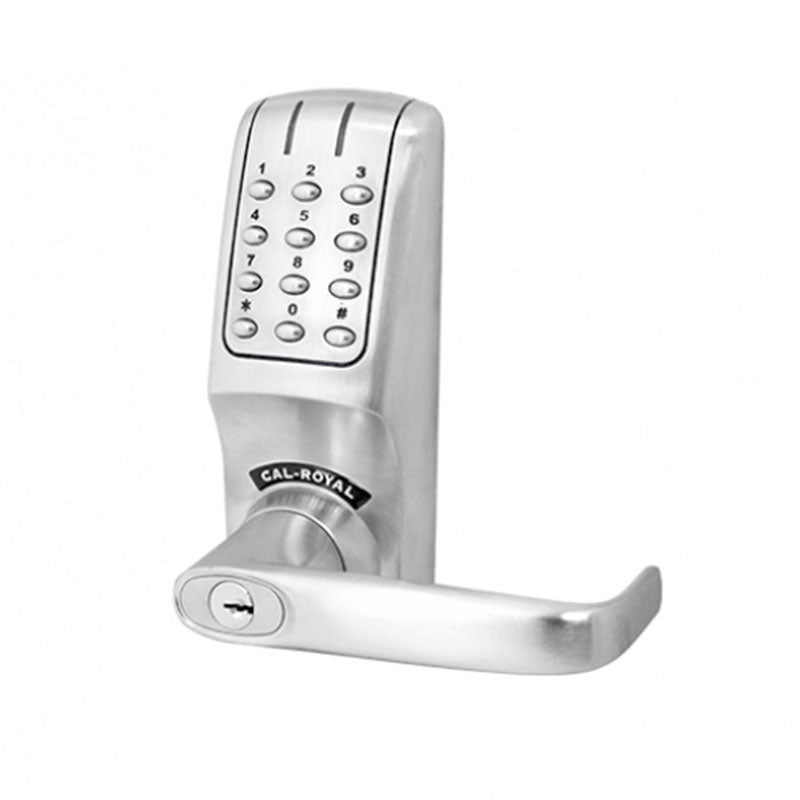

CRCODE007 Lever Trim

  • Dual mode for code free entry either mechanically by key or electronically thru the
    keypad
  • Can store up to 90 different numeric user codes in 4, 5 or 6 digits
  • Settings remain in memory when batteries are removed
  • Audible alarm sounds after 3 incorrect attempts
  • Connections available for remote release switch and automatic lock activation when linked to Fire alarm system
  • Can be used as STOREROOM or CLASSROOM function
  • Factory default set as STOREROOM function
  • Fast and easy programming via master code
  • Includes key override (Schlage C keyway)
Brand

Finishes

US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever

Length

36" (For 30” to 36” doors), 48" (For 37” to 48” doors)

Trim

CRCODE007

Keyway

Schlage C Keyway

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire-Rating

Non-Fire-Rated

Dogging Feature

Half turn hex dogging standard

Latchbolt

Stainless steel 3/4” throw with anti-pick feature

Strike

239 packed standard

Projections

2-1/2" active, 1-3/4" dogged

Door Thickness

1-3/4"

Stile Type

Wide (Standard)

Handing

Device Non-Handed, Trim Handed (LHR/RHR)

Warranty

Limited Lifetime Warranty
