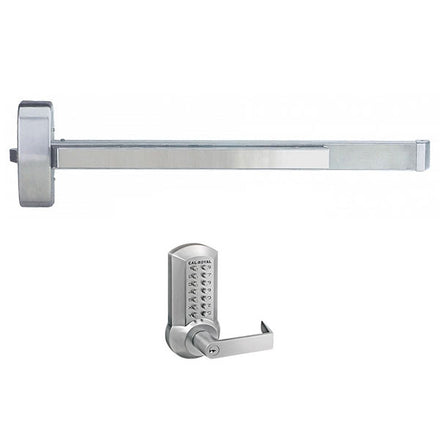

Cal-Royal A9800 x CRCODE204 Panic Rim Exit Device with Mechanical Push Button Lever Trim

$613.77
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes CRCODE204 push button lever with key override
  • More than 8000 possible code combinations

Available Options:

Clear

Product Overview

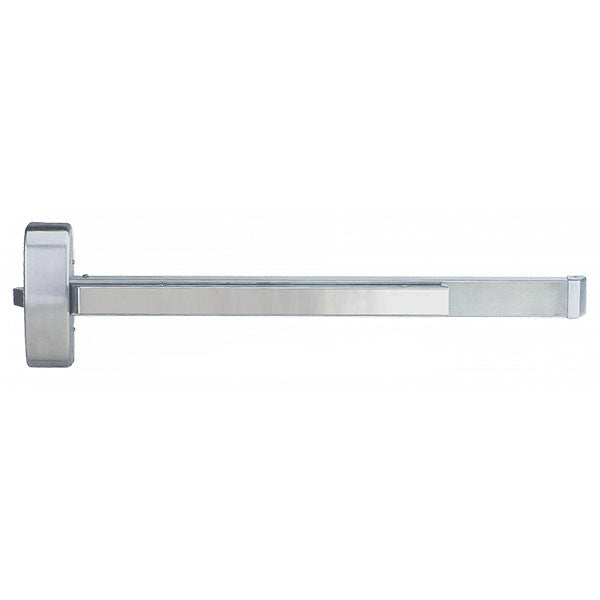

Cal-Royal A9800 ADA Series Grade-1 Rim Exit Device with CRCODE204 Mechanical Push Button Lever Trim

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever.

  • Default Function: Storeroom, Optional Function: Passage Mode
  • Non-handed and easily reversible
  • UL and ULC Listed: Panic rated
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force

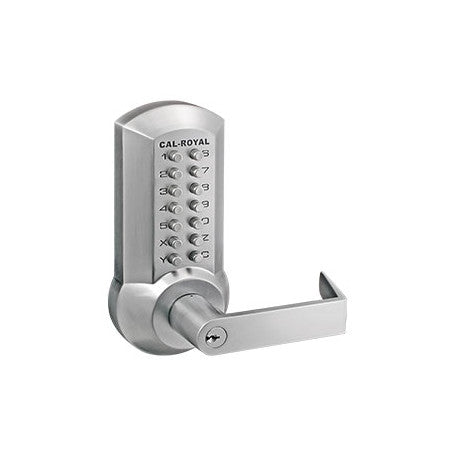

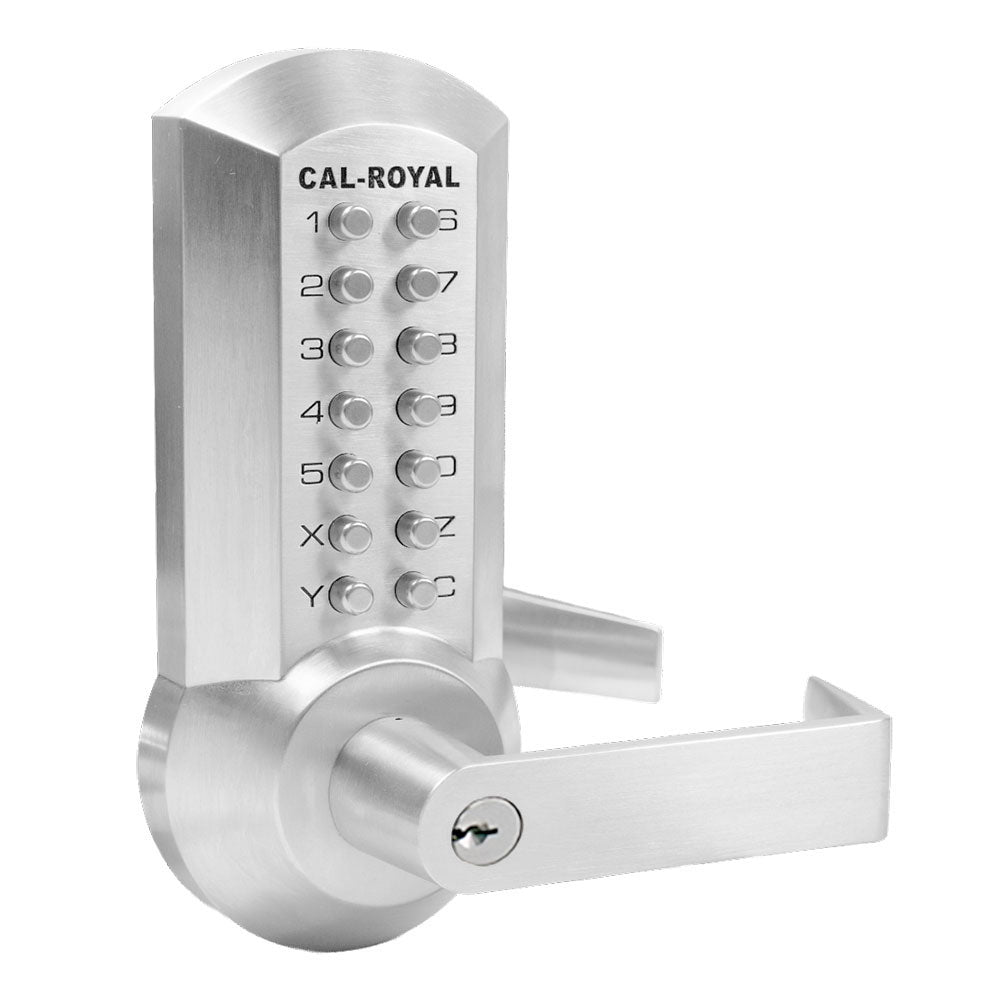

CRCODE204 Lever Trim

  • US26D satin chrome finish
  • 1 – 12 digit code
  • More than 8000 non-sequential possible code combinations
  • Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements
  • Weather-resistant
  • Includes key override (Schlage C keyway)
Brand

Finishes

US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever

Length

36" (For 30” to 36” doors), 24" (For 22” to 24” doors), 32" (For 26” to 32” doors), 48" (For 37” to 48” doors)

Trim

CRCODE204

Keyway

Schlage C Keyway

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire-Rating

Non-Fire-Rated

Dogging Feature

Half turn hex dogging standard

Latchbolt

Stainless steel 3/4” throw with anti-pick feature

Strike

239 packed standard

Projections

2-1/2" active, 1-3/4" dogged

Door Thickness

1-3/4"

Stile Type

Wide (Standard)

Handing

Non Handed – Completely Reversible

Warranty

Limited Lifetime Warranty
