Cal-Royal

Cal-Royal A7700 x ICCRCODE204 Panic Rim Exit Device with Mechanical Push Button Lever Trim, SFIC Prep

$691.53
Usually Ships:  3-5 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes ICCRCODE204 push button lever with key override
  • Small format interchangeable core prep, less core

Available Options:

Clear

Product Overview

Cal-Royal A7700 ADA Series Grade-1 Rim Exit Device with CRCODE204 Mechanical Push Button Lever Trim, (SFIC) Small Format Interchangeable Core Prep, Less Core

The A7700 Series offers uncompromising security and safety in single and double exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever.

  • Default Function: Storeroom, Optional Function: Passage Mode
  • For use with single doors or double doors with mullions
  • Non-handed and easily reversible
  • A7700EO36 = 32″ actual length, for 30″ to 36″ door widths
  • A7720EO48 = 44″ actual length, for 38″ to 48″ door widths
  • UL Listed for Panic Hardware
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force

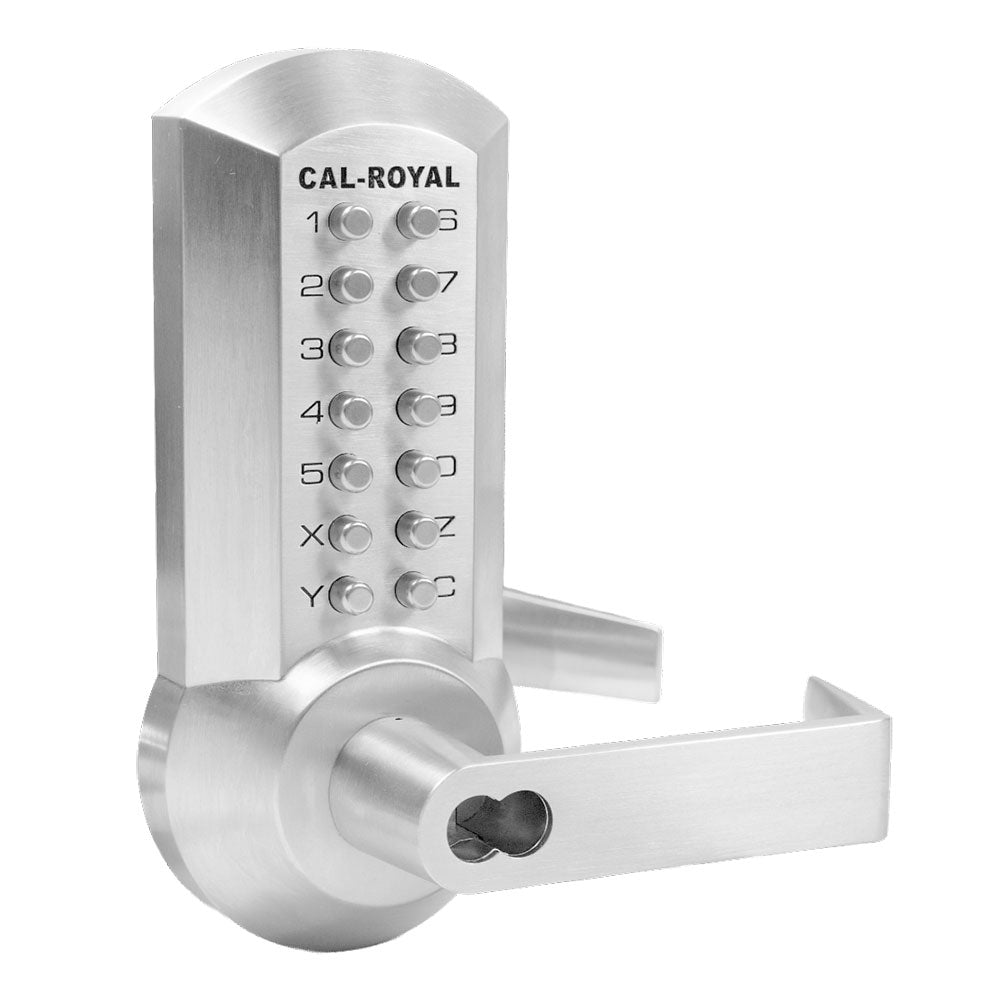

ICCRCODE204 Lever Trim

  • US26D satin chrome finish
  • 1 – 12 digit code
  • More than 8000 non-sequential possible code combinations
  • Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements
  • Weather-resistant
  • Includes key override (Small Format Interchangeable Core Prep, Less Core)
Brand

Finishes

US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Trim

ICCRCODE204

Cylinder Format

Small Format Interchangeable Core (SFIC)

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire-Rating

Non-Fire-Rated

Dogging Feature

Half turn hex dogging standard

Latchbolt

Stainless steel 3/4” throw with anti-pick feature

Strike

938 packed standard

Door Thickness

1-3/4"

Stile Type

Wide (Standard)

Handing

Non Handed – Completely Reversible

Warranty

Limited Lifetime Warranty
