Product Overview

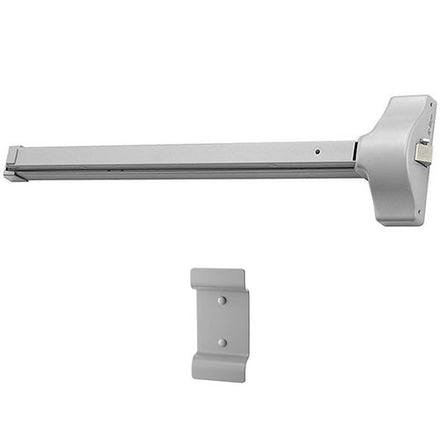

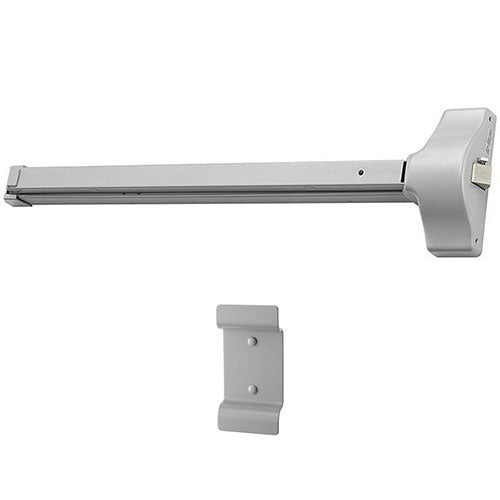

Accentra (formerly Yale) 1800 Series Flatbar Rim Exit Device, 214F Dummy Pull Trim
Accentra 1800 series exit devices are the ideal choice for economy commercial applications where consistent quality, ease of use, and installation are required. The 1800 devices are certified ANSI/BHMAA156.3, Grade-1, and their performance, construction, and versatility make them perfect for a variety of facilities. Ideal for back of the house where function and code compliance are the requirement at an economical price.
- ANSI Function 02 – Pull when dogged
- Designed for wide stile doors
- Non-handed for easy installation
- ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
Yale 214F Dummy Pull Trim
- ANSI Function: 02
- 1-3/4″ door standard
- Plate Dimensions: 3-1/2″ x 3-3/4″ x 3/32″
- Finger Pull Dimensions: 3-1/2″ x 6-3/4″ x 1/8″
| Brand | |
|---|---|
| Length |
36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors) |
| Finishes |
695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated) |
| Includes Trim |
Yes |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3, Grade 1 |
| Usage |
Medium Duty |
| Stile Type |
Wide (Standard) |
| Fire-Rating |
None |
| Handing |
Non Handed – Completely Reversible |
| Minimum Stile Width |
4-1/2" |
| Projections |
2-1/2" active, 1-3/4" dogged |
| Latchbolt |
3/4" deadlocking stainless steel pullman-type |
| Strike |
757F, 793 optional (double door application, panic only) |
| Dogging Feature |
Half turn hex dogging standard |
| Fasteners |
Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Door Applications |
1-3/4" Metal, wood or composite doors |
| Warranty |
1 Year |
