Accentra (Formerly Yale) 1800 x 217F Panic Rim Exit Device with Nightlatch Pull Trim

$243.37
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 03 (nightlatch)
  • Includes 217F pull (cylinder sold separately)

Available Options:

Clear

Product Overview

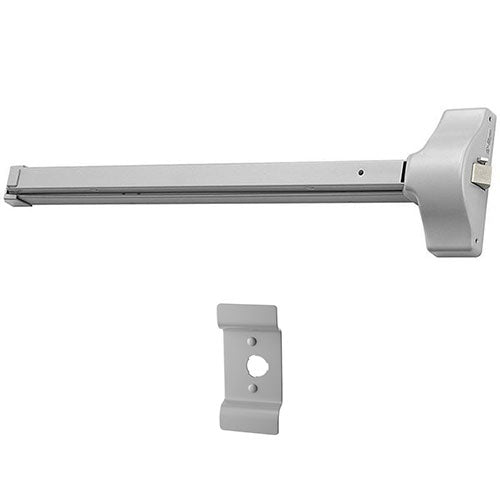

Accentra (formerly Yale) 1800/1800F Series Flatbar Rim Exit Device, 217F Nightlatch Pull Trim

Accentra1800 series exit devices are the ideal choice for economy commercial applications where consistent quality, ease of use, and installation are required. The 1800 devices are certified ANSI/BHMAA156.3, Grade-1, and their performance, construction, and versatility make them perfect for a variety of facilities. Ideal for back of the house where function and code compliance are the requirement at an economical price.

  • ANSI Function 03 – Key retracts latch bolt, Nightlatch Access by Key
  • Designed for wide stile doors
  • Non-handed for easy installation
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

Yale 217F Nightlatch Pull Trim, Less Cylinder

  • ANSI Function: 03
  • 1-3/4″ door standard
  • Rim cylinder required (sold separately)
  • Plate Dimensions: 3-1/2″ x 3-3/4″ x 3/32″
  • Finger Pull Dimensions: 3-1/2″ x 6-3/4″ x 1/8″
Brand

Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Includes Trim

Yes

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Usage

Medium Duty

Stile Type

Wide (Standard)

Fire-Rating

1800: Non-Rated - 1800F: UL/cUL Listed for use on fire doors up to 3 hours

Handing

Non Handed – Completely Reversible

Minimum Stile Width

4-1/2"

Projections

2-1/2" active, 1-3/4" dogged

Latchbolt

3/4" deadlocking stainless steel pullman-type

Strike

757F, 793 optional (double door application, panic only)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware

Door Applications

1-3/4" Metal, wood or composite doors

Warranty

1 Year
