Product Overview

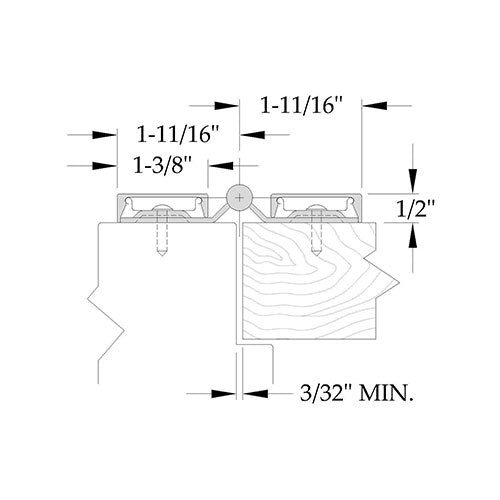

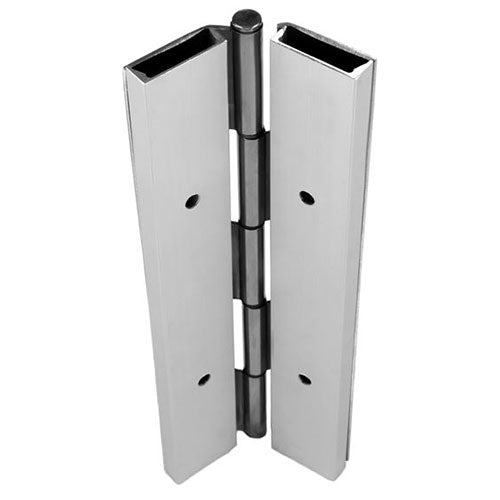

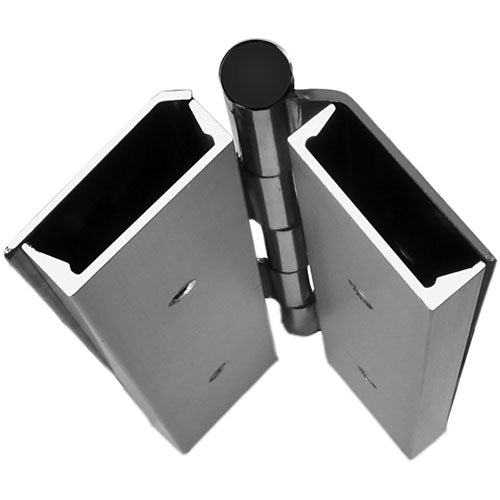

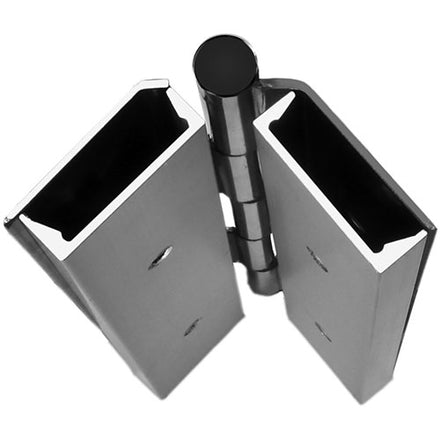

ABH A502 Stainless Steel Pin & Barrel Continuous Hinge, Full Surface
- Full Surface, Heavy Duty
- No door inset, flush mount
- 48” door width maximum
- 600 lbs. door weight maximum
- Frame and door leaf fastener covers are clear anodized aluminum
- Fasteners: 1/4-20 x 3/4" round head self-drilling tek machine screws, zinc plated for door
- Lengths: 78-3/4", 83-1/8", 85”, and *95”
- Finishes: US32D Satin Stainless Steel
- Fire Rating doors, based on the following
• 20 minutes – wood doors
• 90 minutes – hollow metal and composite
• 3 hours – hollow metal doors
*Oversize handling fee applies (added at checkout)
| Brand | |
|---|---|
| Finish |
Stainless Steel |
| Length |
83" (for 7'0" door), 79" (for 6'8" door), 85" (for 7'2" Door), 95" (for 8'0" door) |
| Material |
Stainless steel, Frame and door leaf fastener covers are clear anodized aluminum |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.26-2017 Certified |
| Fire-Rating |
UL and cUL Listed – up to 3 Hours |
| Continuous Hinge Type |
Full Surface |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
