Product Overview

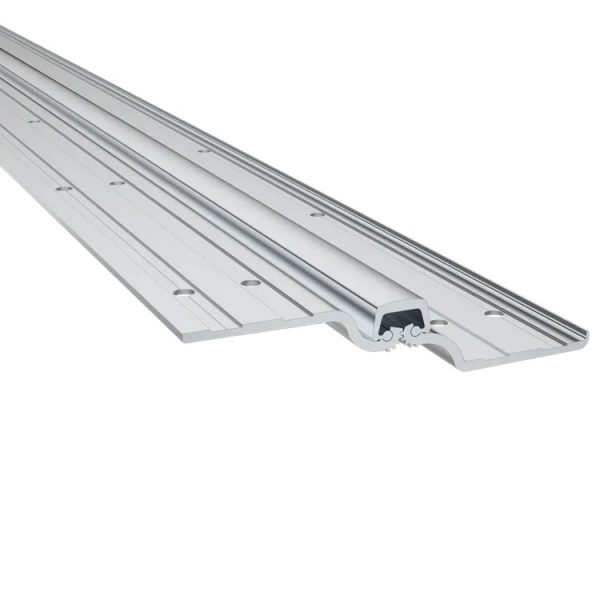

Pemko FM_RG_HD1 Full Mortise Raised Geared Continuous Hinge, Heavy Duty

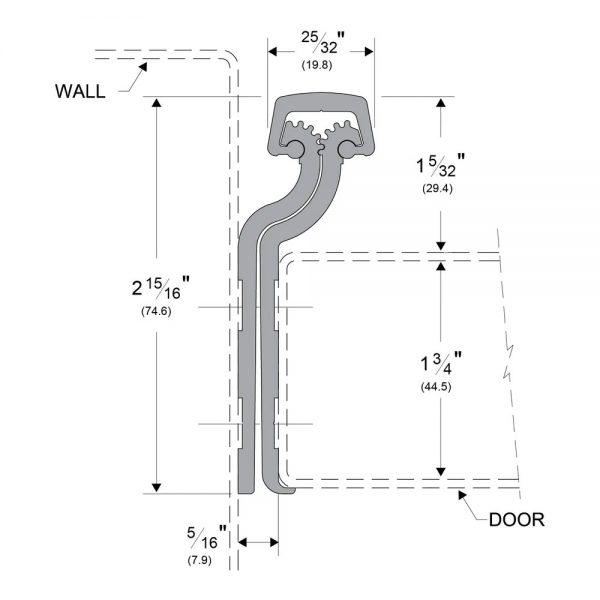

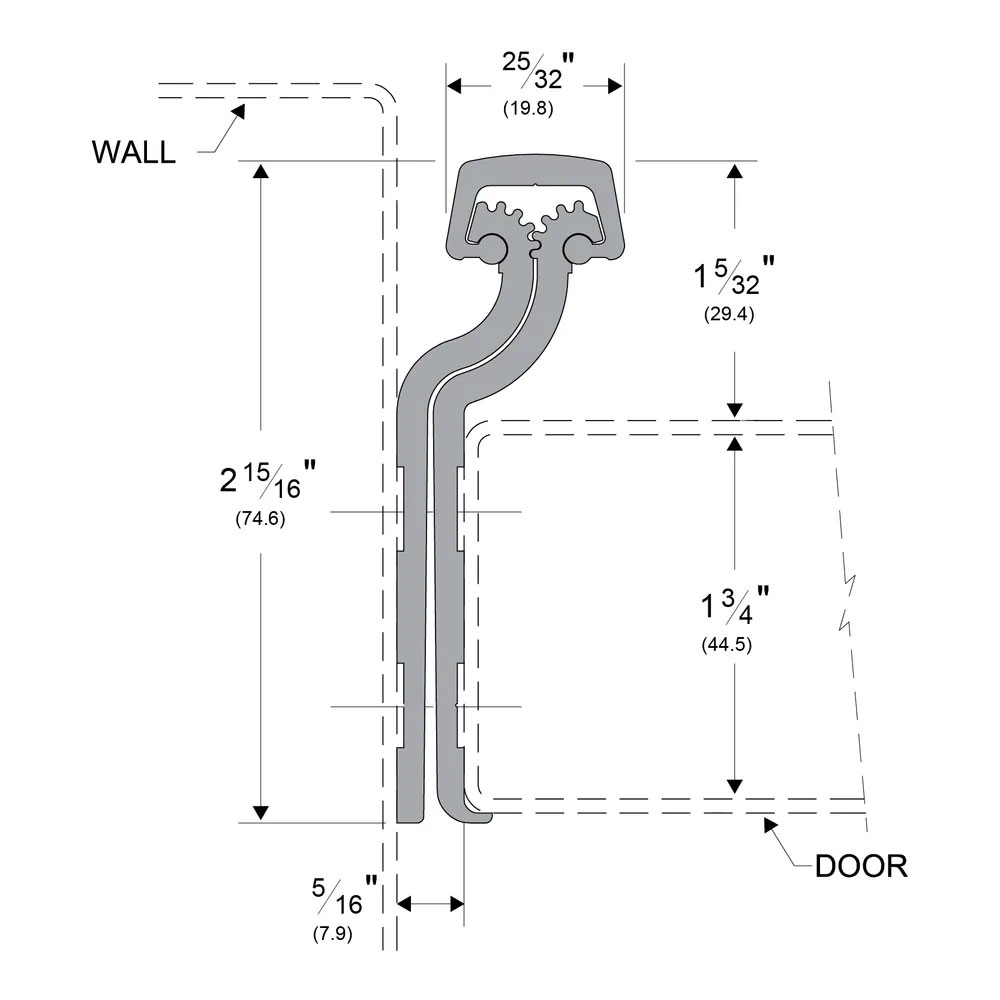

The FM_RG Series Full Mortise Raised Geared Hinge is designed for wood or metal cased openings when hinge is to be installed deep on the rabbet. This hinge is available in a heavy duty model and features leaves designed to allow for the hinge to pivot without interference from the cap.
Features
- For wood or metal frames with applied facing or other decorative moldings
- Conceals both leaves
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance
- Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Benefits
- Special hinge reinforcements are not required
- Removal of hinge reinforcements in the door and frame is not advised
- Hollow metal door and frame manufacturers’ standard is acceptable
- Guaranteed for the life of the opening against defects in material or workmanship
Certifications
- Health Product Declaration (HPD)
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ANSI/BHMA Standard A156.26
| Brand | |
|---|---|
| Finishes |
C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Continuous Hinge Type |
Full Mortise (Concealed) |
| Length |
83" (for 7'0" door), 95" (for 8'0" door) |
| Material |
Aluminum |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
ANSI/BHMA Standard A156.26 Grade 1 |
| Fire-Rating |
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
