Pemko 345_V Surface Plate Door Bottom Sweep with Rain Drip and Eco-V Insert

The 345 Series offers a surface plate door sweep with a rain drip, designed for doorways where deflecting the elements is essential. With a straightforward rain deflector plate extending 0.875" to the floor and 0.625" above the door bottom. This door bottom sweep is supplied with an Eco-V® ("V") insert.

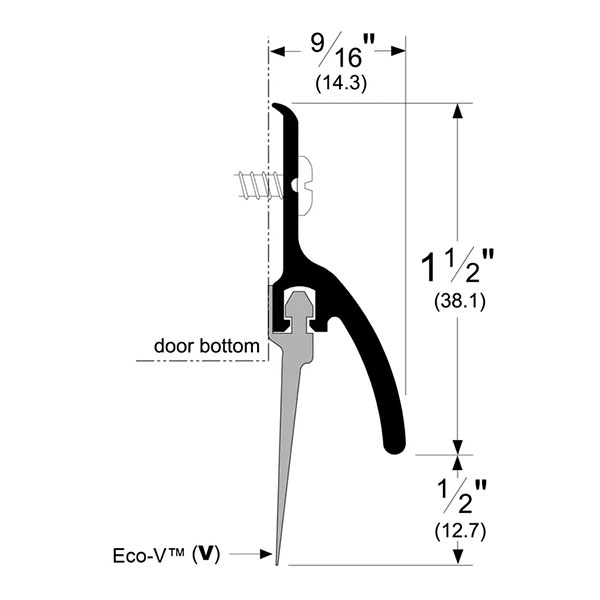

  • WIDTH: 9/16” (14.3 mm)
  • PROFILE HEIGHT: 1-1/2” (38.1 mm)
  • TOTAL HEIGHT WITH INSERT: 2” (50.8 mm)

Finishes

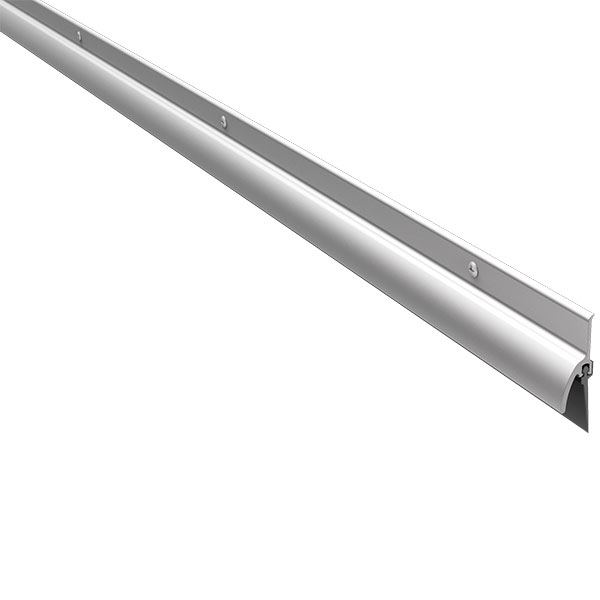

  • 345AV: A - Mill Finish Aluminum with Gray Eco-V insert
  • 345BSPV: BSP - Black Suede Powder Coat Aluminum with Black Eco-V insert
  • 345DV: D - Dark Bronze Anodized Aluminum with Black Eco-V insert
  • 345WSPV: WSP - White Suede Powder Coat Aluminum with White Eco-V insert

Ratings

  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Brand

Finishes

BSP Black Suede Powder Coat, WSP White Suede Powder Coat, D – Dark Bronze Anodized Aluminum, A - Mill Finish Aluminum

Length

36", 48"

Fire-Rating

Fire Rated - UL10C - Positive Pressure
