PDQ 7101 BC DS Door Closer with Door Saver Stop Arm

$222.72
Usually Ships:  2-3 Business Days
  • Heavy Duty, BHMA/ANSI Grade-1 certified
  • Includes Door Saver arm with dead stop
  • Parallel arm mount only

Available Options:

Clear

Product Overview

PDQ 7101 BC DS Extra Heavy Duty Grade-1 Institutional Door Closer, Door Saver Deadstop Arm

The 7100 Series is PDQ’s top of line heavy duty closer. It is designed for high use, high abuse institutional applications such as K-12, higher education and government buildings. 7100 Series closers are ideal for retrofit and new construction applications where strength and durability are required.

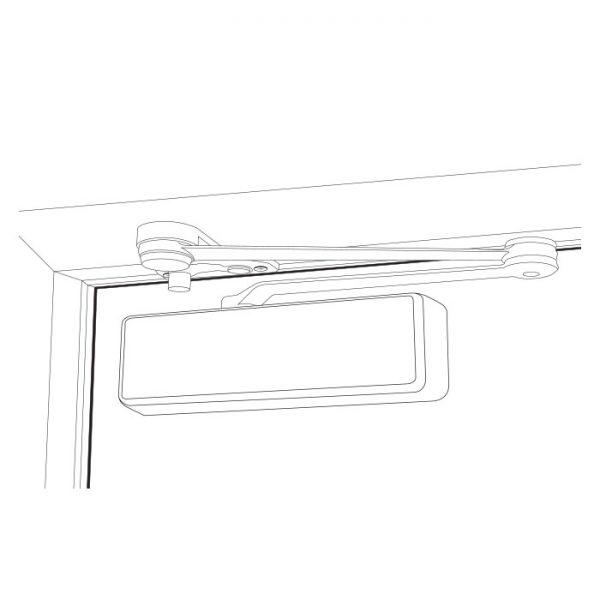

The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy-duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer’s backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized.

  • Parallel arm installation
  • Includes door saver arm with deadstop
  • Mounting hole pattern retrofits LCN® 4040
  • High strength cast iron body
  • Forged steel main arm
  • Full plastic cover standard
  • UL listed 3-hour fire door
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR

codes

Brand

Finishes

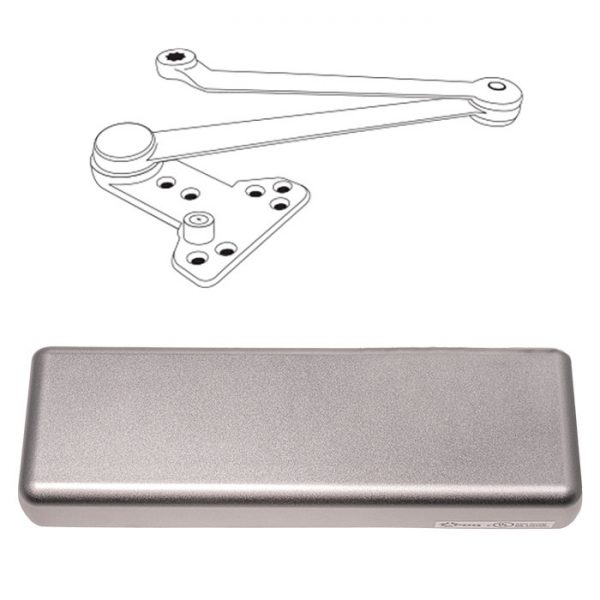

693 Black (Powder Coated), 689 Aluminum (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated)

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover

Handing

Non-Handed

Mounting Options

Parallel Arm (Push Side)

Door Application

Hollow Metal, Wood or Aluminum

Warranty

25 Year Limited
