PDQ 7101 BC RA Door Closer

$168.96
Usually Ships:  2-3 Business Days
  • Heavy Duty, BHMA/ANSI Grade-1 certified
  • Fully Adjustable, sizes 1-6
  • Regular or top jamb mount

Available Options:

Clear

Product Overview

PDQ 7101 BC RA Extra Heavy Duty Grade-1 Institutional Door Closer with Regular Arm

The 7100 Series is PDQ’s top of line heavy duty closer. It is designed for high use, high abuse institutional applications such as K-12, higher education and government buildings. 7100 Series closers are ideal for retrofit and new construction applications where strength and durability are required.

  • Regular or top jamb installtion
  • Mounting hole pattern retrofits LCN® 4040
  • High strength cast iron body
  • Forged steel main arm
  • Full plastic cover standard
  • UL listed 3-hour fire door
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR

codes

Brand

Finishes

689 Aluminum (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)

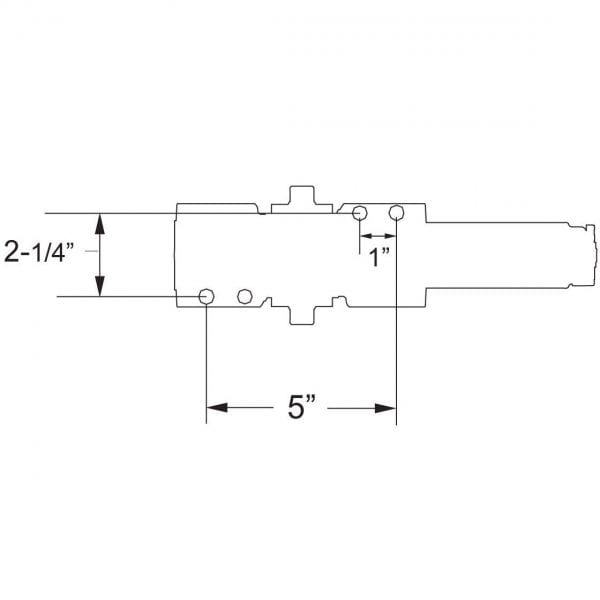

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover

Handing

Non-Handed

Mounting Options

Regular (Pull Side), Top Jamb (Push Side)

Door Application

Hollow Metal, Wood or Aluminum

Warranty

25 Year Limited
