McKinney

McKinney 6100 Single Acting Spring Hinge for Wood Doors

$116.28
Usually Ships:  3-5 Business Days
  • Designed to support one-way door movement
  • Adjustable spring tension brings door back to the closed position
  • Designed for use with wood doors

Available Options:

Clear

Product Overview

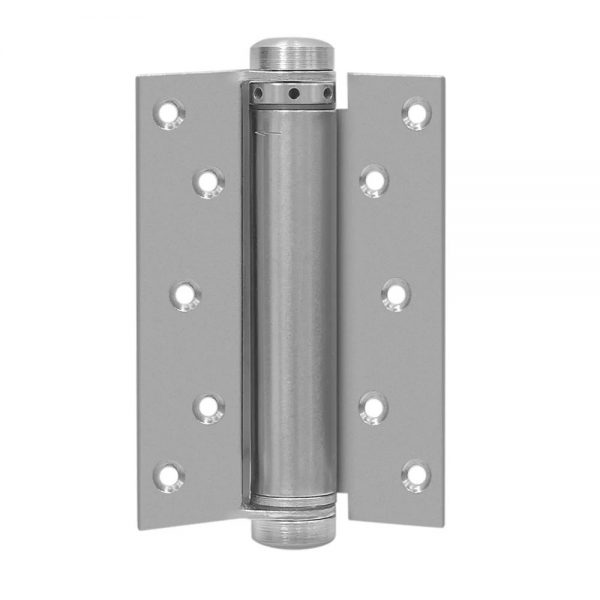

McKinney 6100 Single Acting Spring Hinge for Wood Doors

The 6100 Single Acting 6" Hinge is designed to support one-way door movement, making it ideal for applications where controlled door swing is required. Its barrel reflects the traditional design of older single-action spring pivot hinges, offering a classic aesthetic with reliable performance. This commercial-grade hinge is intended for use with wood doors.

Features

  • Supports one-way door movement
  • Barrel design matches older single-action spring pivot hinges
  • Adjustable spring tension brings door back to the closed position
  • Not compatible with other hinge types; does not align with standard full mortise hinges
  • For wood doors
  • Non-template, non-hold open
  • Commercial grade
  • Packed with all wood screws
  • Offered in the finishes Prime (P) & Black (B)

Benefits

  • Controlled one-way spring
  • Classic aesthetic
  • Smooth self-closing action
  • Commerical-grade durability

Specifications

  • Base Material: Steel
  • Door Type:Wood
  • Handing: Non-handed
  • Leaf Height:6"
  • Leaf Length: 1 9/32"
  • Maximum Door Height: 7'
  • Maximum Door Thickness:1 3/4"
  • Maximum Door Weight: 155lbs.
  • Maximum Door Width: 4'
Brand

Finish

Prime Coat, Black

Size

6"

Usage

Medium Duty

Fasteners

Packed with all wood screws

Handing

Non-Handed
