McKinney 1001 6" x 4-1/2" Double Acting Spring Hinge

$141.72
Usually Ships:  3-5 Business Days
  • Permits doors to open in either direction and automatically return to closed
  • Designed for 1-3/4” stock hollow metal or wood doors
  • Door flange designed to fit standard 4-1/2" x 4-1/2" template mortise

Product Overview

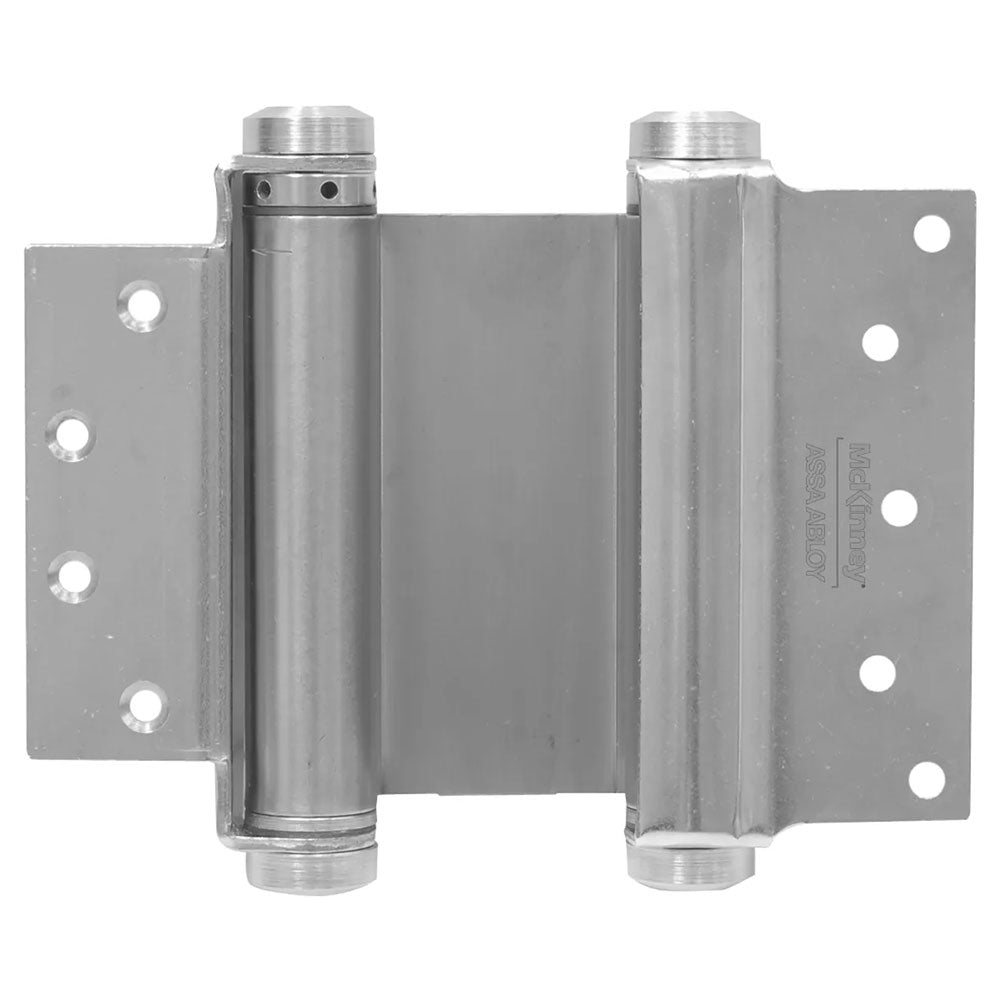

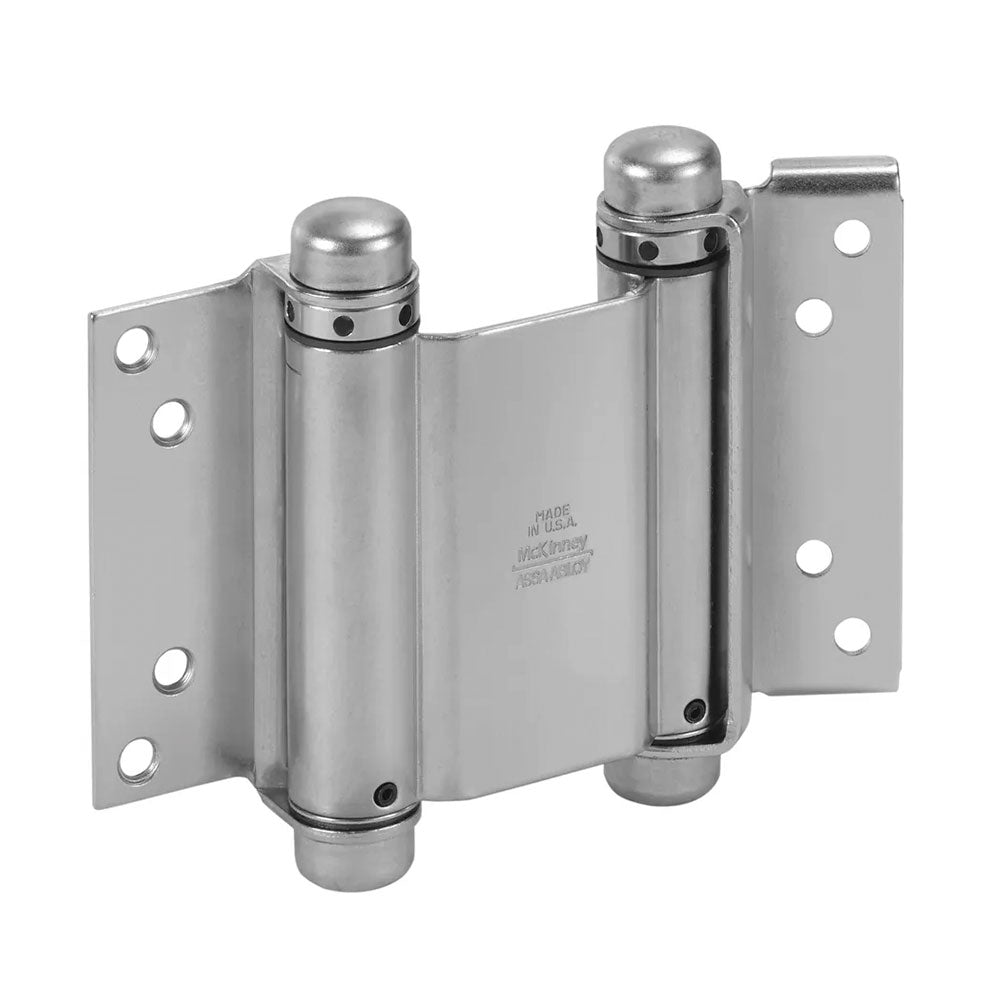

McKinney 1001 Full Mortise Double Acting Spring Hinge - 6" x 4-1/2", Satin Chrome Finish

The 1001 double acting spring hinge is recommended for 1-3/4" thick stock hollow metal or wood doors

  • Door flange designed to fit standard 4-1/2" x 4-1/2" template mortise
  • Do not use on doors with hinge edge beveled
  • Jamb flange surface applied to jamb
  • Non-template
  • Non-handed
  • Packed with all machine screws and half wood screws
  • For use on stock hollow metal or wood doors that are 1-3/4" thick
Brand

Finishes

652 Satin Chrome

Size

6" x 4.5"

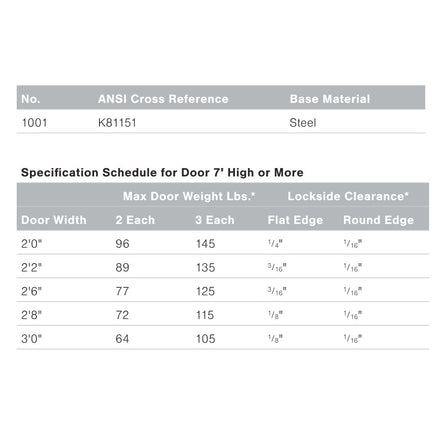

ANSI/BHMA Standard

K81151

Usage

Medium Duty

Fasteners

Packed with wood and metal screws
