Timely

Timely 36S Prefinished Steel Borrowed Lite Frame for 3-5/8" to 3-3/4" Wall, Full Bound Window Unit

$190.40
Usually Ships:  3-5 Business Days

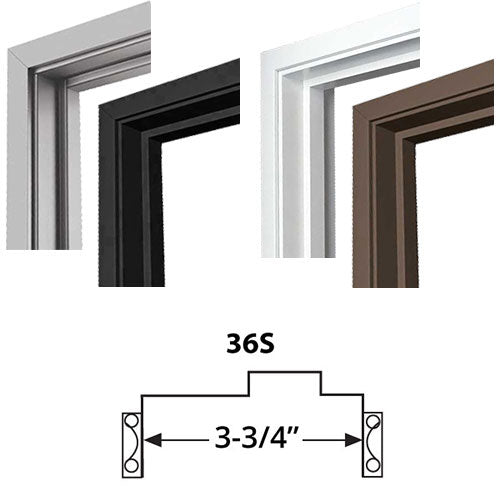

  • 36S Classic frame - 3-5/8" to 3-3/4" wall thickness
  • Includes TA-8 casing and cut TA-14 glass stops (glass not included)
  • Size equals Net I.D. (inside dimension) - width x height

Available Options:

Clear
Added to Cart

Product Overview

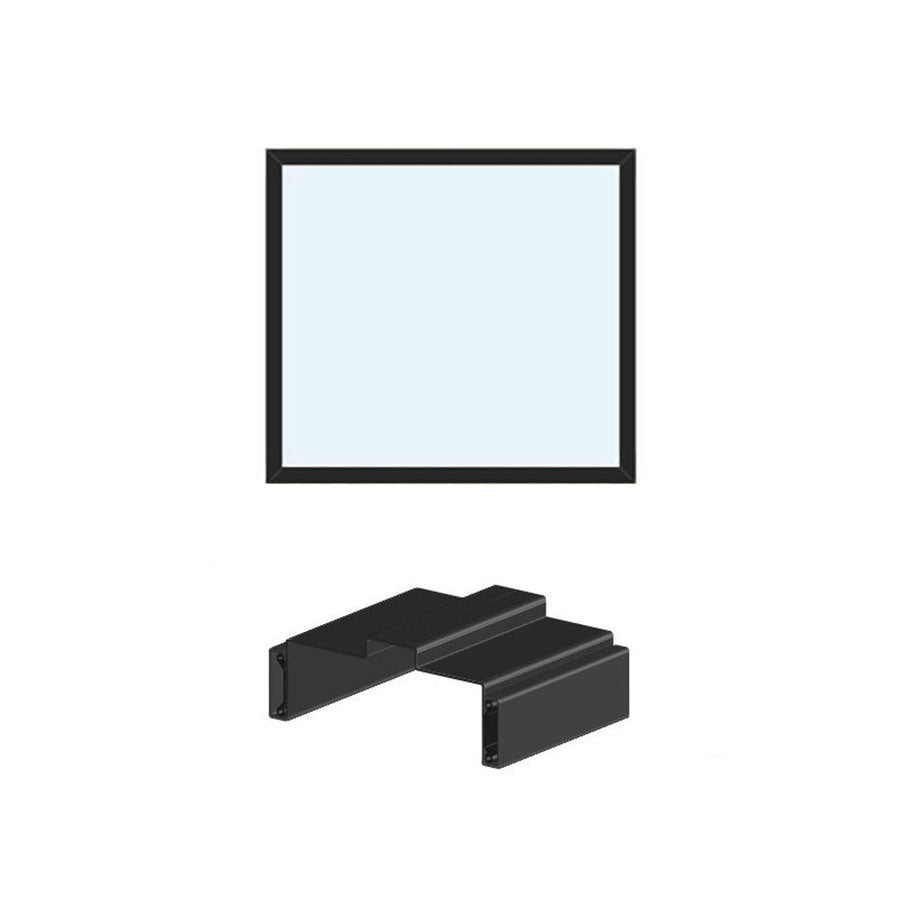

Timely 36S Classic S-Series Prefinished Steel 4-Sided Borrowed Lite Frame (Full Bound Window), 3-5/8" to 3-3/4" Wall, TA-8 Steel Casing Trim, TA-14 Glass Stops, Less Glazing

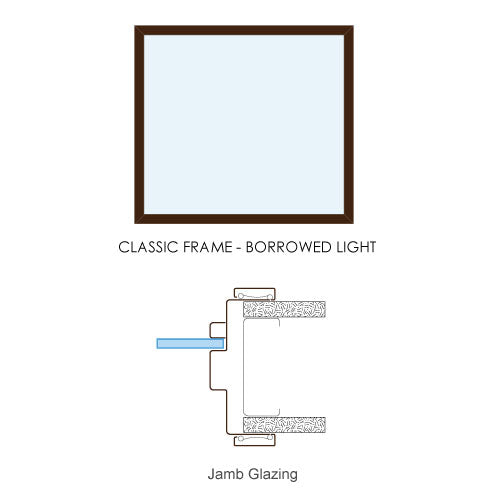

A borrowed lite is a frame with fixed glass that functions as a fixed window. Borrowed lite frames allow light to pass from one room into another. Designed for commercial and institutional use in offices, hotels, schools, hospitals, and health care facilities. The classic frame is the most popular profile.

  • Borrowed Lite refers to a glazed area of your design not attached to a door
  • 20-gauge prefinished GalXC™ hot-dipped galvanized steel
  • Glazing not included (glass by others)
  • Includes 4 jamb pieces, no vertical or horizontal mullions included
  • TA-8 steel casing included, snap-on spring clip system
  • Includes cut-to-size glass stops. Stops install on the inside of the frame to hold the glass in place.
  • Ideal for most interior commercial drywall applications (wraps built stud wall)
  • Recommended for interior applications only
  • Easy installation, #6 drywall screws recommended for anchoring (not included with frame)
  • Order by Net I.D. (inside dimension) - width x height
  • Rough opening + 1-1/4" width + 1-1/4" height of Net I.D.
  • For glass size, 1/8" less in width & height is common field practice (glass not included)
  • Borrowed lites are available with fire rating. Please inquire for a quote.
  • Fire-rated frames, custom colors, sizes, and jamb widths are available. Please inquire for a quote.

s-series-bl

Brand

Series

Classic S Series

Base Material

GalXC hot dipped galvanized steel, G-30 coating weight

Steel Gauge

20-gauge

Frame Profile / Wall Thickness

36 - 3-5/8" to 3-3/4"

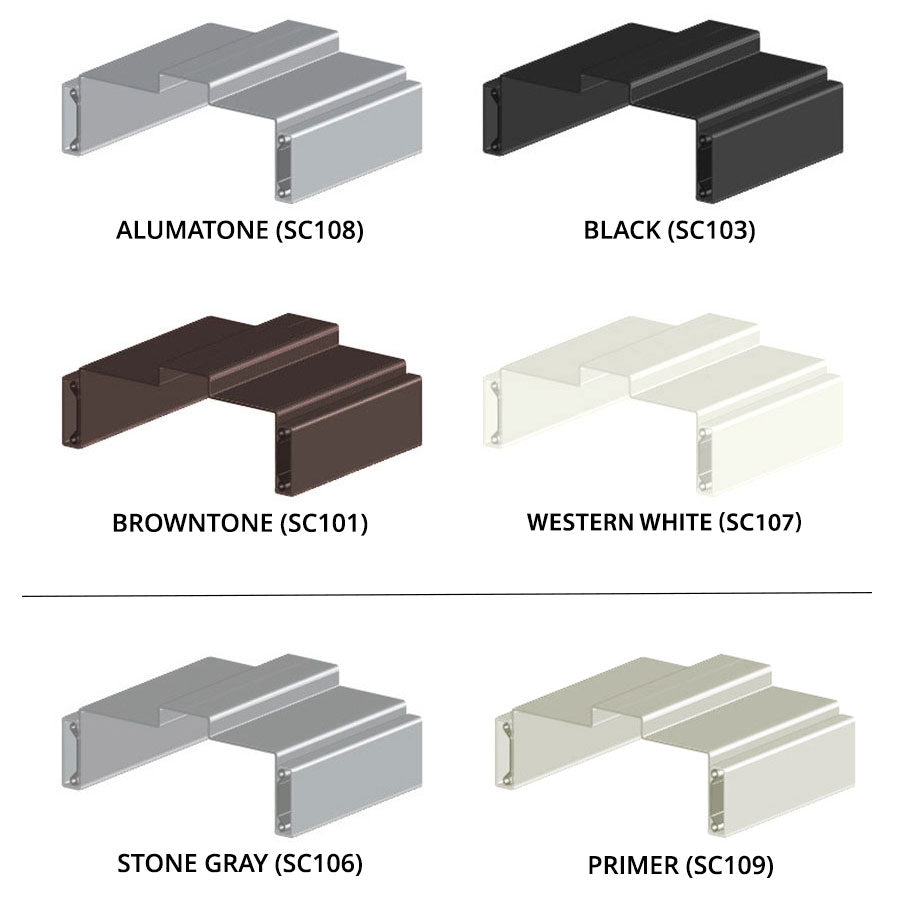

Finish

Black

Casing

TA-8 steel casing

Glass Stops

TA-14 1/2" x 1/2" Glass stops included (cut-to-size)

Glazing

No glazing included (glass by others)

Anchors

#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners.

Fire-Rating

No fire label included. Optional in limited sizes up to 45 Minutes. Inquire for quote.

Buy American Act Compliance

Meets Buy American Act - Made in USA
