Product Overview
Sargent 8265 Grade 1 Privacy Bath/Bedroom Mortise Lock, L Lever, LN Rose, Field Reversible, ASA Strike
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
ANSI F22 – Privacy – Trim outside retracts latchbolt except when locked by thumbturn. Trim inside retracts latchbolt and unlocks outside trim. Emergency Release locks/unlocks trim outside-by coin, screwdriver or Emergency key (14-0057) ordered separately. Thumbturn locks and unlocks trim outside. Closing the door will unlock outside trim.
- Far exceeds independently verified testing for strength and durability. Verified for over 14 million cycles.
- Easy installation, Pre-assembled components make installation fool-proof
- UL-cUL listed for three-hour fire doors and windstorm applications
- Levers meet ADA compliance for national codes
- 10-year warranty
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| Lock Function |
Privacy |
| ANSI Function |
F22 |

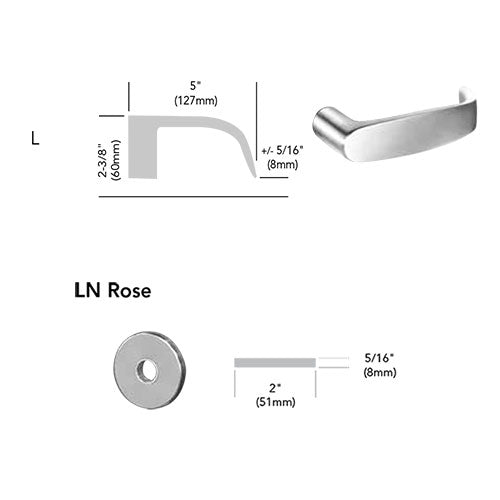

| Lever Design |
L |
| Rose Design |
LN |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
UL and cUL Listed to safety standards for A label (3 hour fire door) and lesser class doors |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Backset |
2-3/4" |
| Strike |
ANSI Standard; curved lip, non-handed |
| Handing |
Easily field reversible (ships as RH) |
| Minimum Stile Width |
4-1/2" |
| Door Thickness |
1-3/4" |
| Door Prep |
ANSI A156.115 modified per template |
| Warranty |
10 Year Limited |
| Buy American Act Compliance |
Meets BAA - Buy American Act |
