Product Overview
Pemko 4131_RL Surface Applied or Semi-Mortise Automatic Door Bottom with Sponge Neoprene Insert
Smoother action positive seal mechanism. All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold.

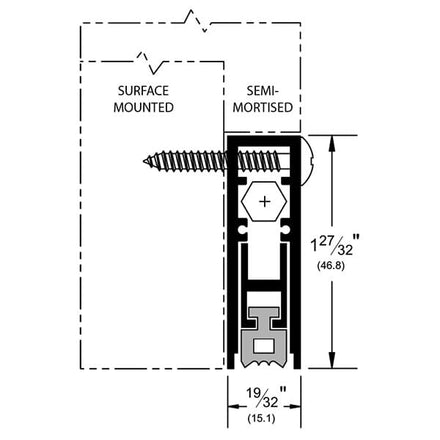

- WIDTH: 19/32” (15.1 mm)
- HEIGHT: 1-27/32” (46.8 mm)
4131CRL: C - Clear Anodized Aluminum with Black Sponge EPDM insert
4131BSPRL: BSP - Black Suede Powder Coat with Black Sponge EPDM insert
4131DRL: D - Dark Bronze Anodized Aluminum with Black Sponge EPDM insert
Ratings
- Air Infiltration Tested
- Sound Tested - ASTM E90
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Length |
36", 24", 42", 48" |
| Finishes |
BSP Black Suede Powder Coat, C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Fire-Rating |
UL/cUL listed |
