Product Overview

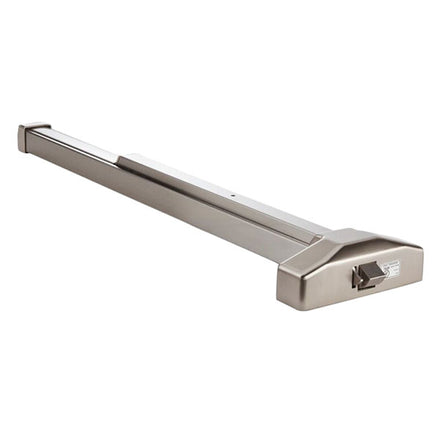

PDQ 4200R Series Grade-1 Rim Exit Device
- Exit Only (PDQ Exit Device Trim Sold Separately)
- Non-Handed
- Roller strike comes standard
Certifications
- UL 305
- UL 10C listed 90-minute fire door, for single doors up to 3’ x 7’
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel, SP28 (689) Aluminum |
| ANSI/BHMA Standard |
Designed to meet ANSI/BHMA Grade 1 |
| Usage |
Medium Duty |
| Stile Type |
Wide (Standard) |
| Minimum Stile Width |
4-1/2" |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Strike |
Roller Strike |
| Trim |
None - Exit Only (Outside Trim Sold Separately) |
| Handing |
Completely Reversible |
| Warranty |
5-year limited |
