Trudoor TD-SGTF Adhesive-Backed Triple-Fin Silicone Fire and Smoke Seal Perimeter Gasketing

Trudoor's Choice for self-adhesive triple-fin seals
$28.82
Usually Ships:  5-10 Business Days
  • Install on door frames to seal top and sides of door
  • Seals against smoke, fire, air, sound, and weather
  • Excellent compression; door latches easily

Available Options:

Clear

Product Overview

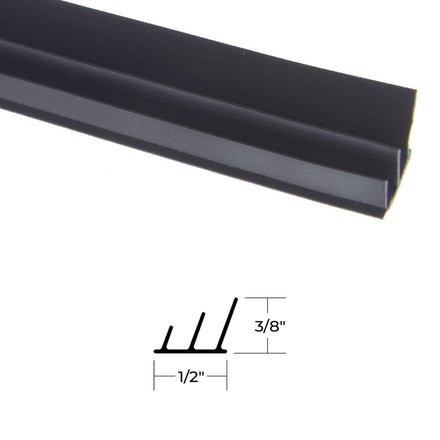

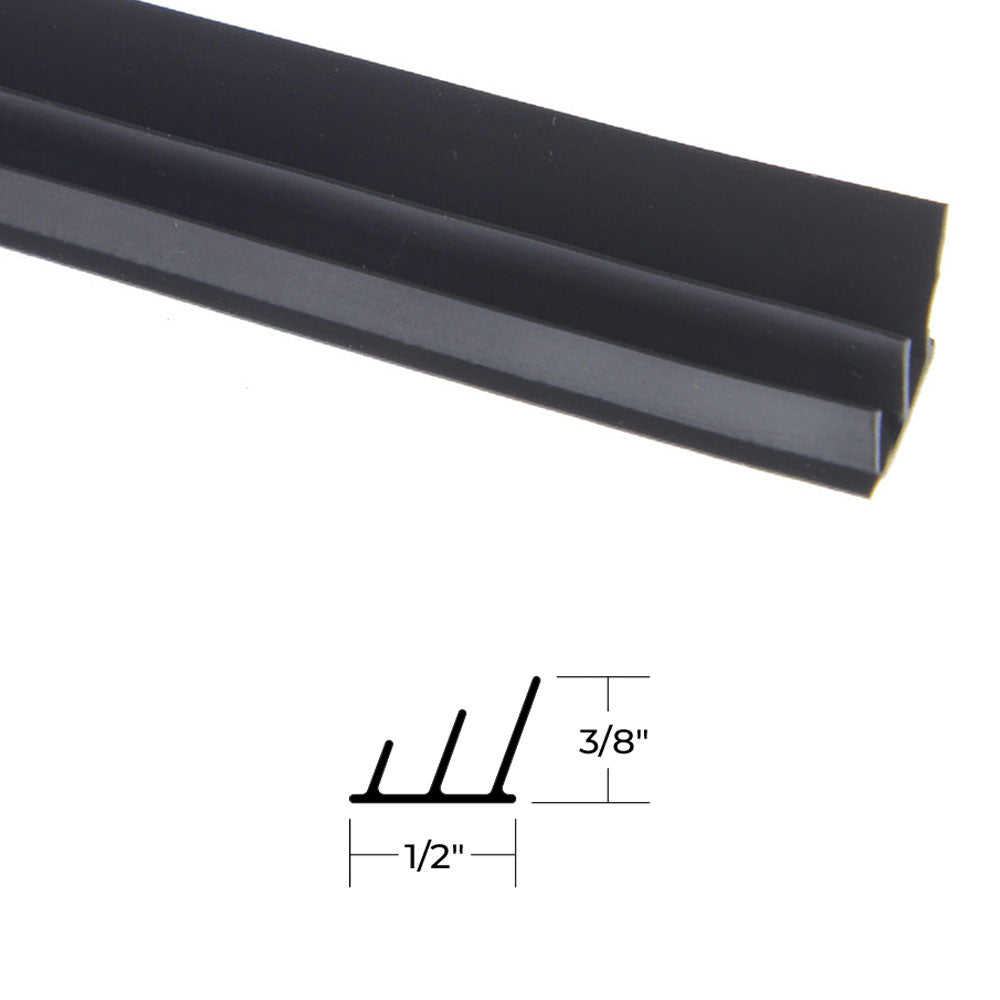

Trudoor TD-SGTF Adhesive-Backed Triple-Fin Fire and Smoke Commercial Door Gasketing

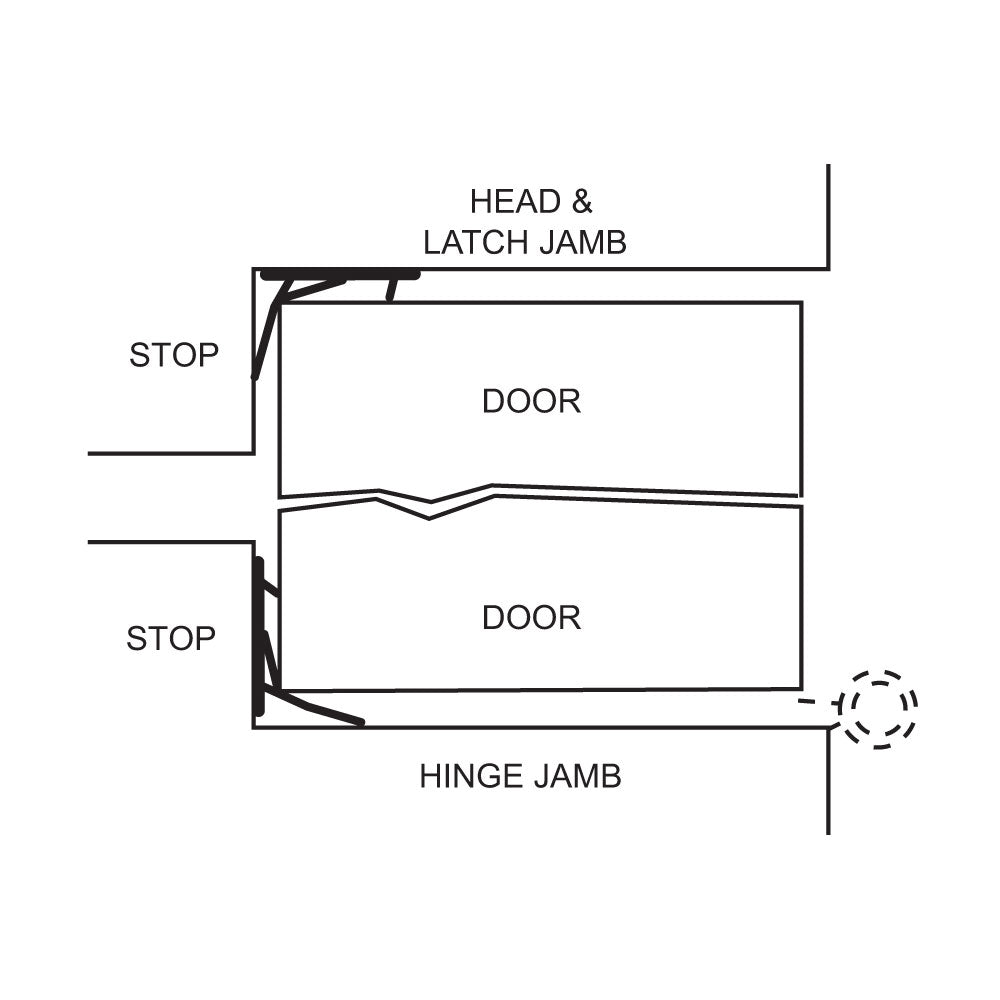

Trudoor TD-SGTF self-adhesive silicone fire and smoke seal is applied to the perimeter of a door frame to create a tight seal against the door.

  • Self-Adhesive
  • Good Abrasion Resistance
  • Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol, and the Influence of Chemicals
  • Temperature range of -30°F up to 250°F
  • One-year shelf life when stored at 75°F and 50% relative humidity or less
  • STC 52
  • 1/2" Width x 3/8" Height
  • Available in 17 and 25 ft. rolls
  • Made in the USA

Ratings

  • UL to CAN/ULC-S104 and ANSI/UL10B - ANSI/UL10C
  • Smoke Tested to ANSI/UL10C and ANSI/UL1784
  • Air Infiltration Tested to ASTM E283
  • Sound Tested to ASTM E90

Smoke and draft control - category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors.

door-sweep-certs

Cross-reference: Air Louvers WT-793, Cal-Royal C-0773, Hager 738, NGP 5075, Pemko S773, Reese 793, Zero 8150S

Brand

Roll Length

17' Roll, 25' Roll

Finishes

Black

Fire-Rating

Fire Rated - UL10C - Positive Pressure

Gasket Type

Adhesive-backed

Insert/Seal Type

Silicone

Buy American Act Compliance

Meets Buy American Act - Made in USA
