Trudoor TD-SG Adhesive-Backed Silicone Fire and Smoke Seal Perimeter Gasketing

Trudoor's Choice for self-adhesive seals
$15.68
Usually Ships:  Same Day
  • Use on door frames to seal top and sides of door
  • Seals against smoke, fire, air, sound, and weather
  • Excellent compression; door latches easily

Available Options:

Clear

Product Overview

Trudoor TD-SG Adhesive-Backed Fire and Smoke Commercial Door Gasketing

Trudoor TD-SG self-adhesive silicone fire and smoke seal is applied to the perimeter of a door frame to create a tight seal against the door.

  • Self-Adhesive
  • Flame resistant
  • Moisture resistant
  • Excellent resistance to ozone, UV and aging
  • Provides high initial adhesion and long term holding power for permanent mounting on exterior or interior doors
  • Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
  • Temperature range of -30°F up to 250°F
  • One year shelf live when stored at 75°F and 50% relative humidity or less
  • Compresses to seal up to a 1/16" gap

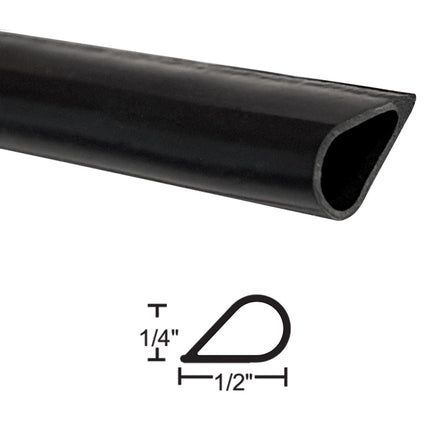

  • 1/2" width x 1/4" height
  • Available in 17 and 25 ft. rolls
  • Made in the USA

Ratings

  • UL to CAN/ULC-S104 and ANSI/UL10B - ANSI/UL10C
  • Smoke Tested to ANSI/UL10C and ANSI/UL1784
  • Air Infiltration Tested to ASTM E283
  • Sound Tested to ASTM E90

Smoke and draft control - category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors.

door-sweep-certs

Cross-reference: Air Louvers WT-797, Cal-Royal C-880, Design Hardware SS-S, Hager 726, NGP 5050, Pemko S88, Reese 797, Zero 188S

Brand

Roll Length

17' Roll, 25' Roll

Finishes

Black

Fire-Rating

Fire Rated - UL10C - Positive Pressure

Gasket Type

Adhesive-backed

Insert/Seal Type

Silicone

Buy American Act Compliance

Meets Buy American Act - Made in USA
