Falcon

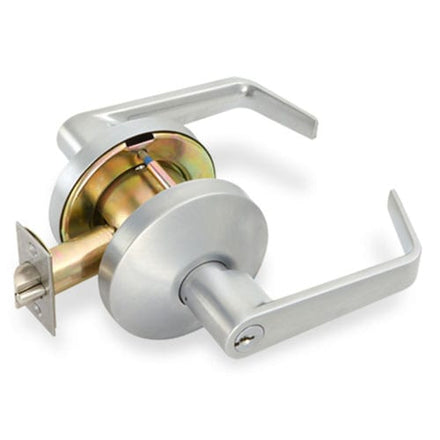

Falcon B511CPD DANE Entry/Office Lever Lock

$163.53
Usually Ships:  1-2 Business Days
  • Medium Duty - ANSI Grade 2
  • ANSI F109 Function
  • ADA Compliant - 3 Hour Fire-Rated

Product Overview

When you need a tough, reliable lock at the right price point for a retail, industrial or multifamily project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength.

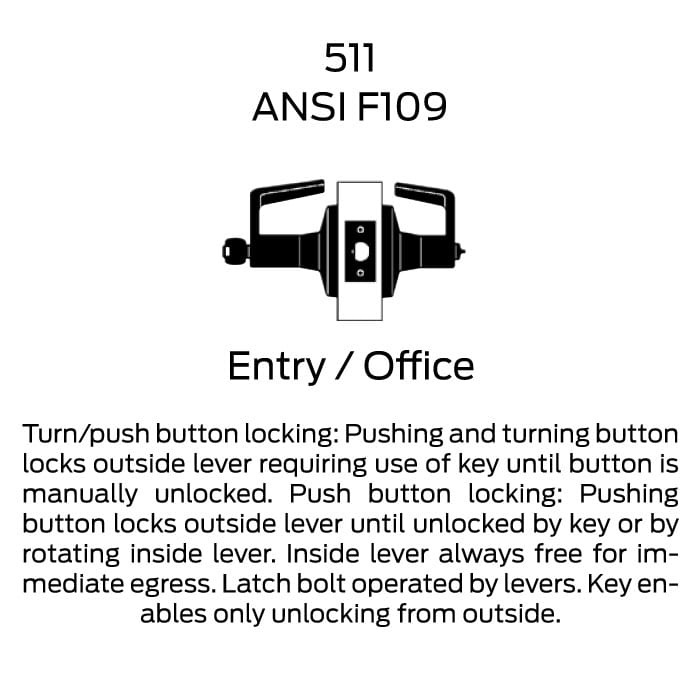

ANSI Function F109 - Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.

  • Non-handed for easy field assembly
  • Lever trim has individual heavy-duty springs for lever return and to prevent lever sag

Brand

Finishes

626 Satin Chrome

Lock Function

Entry (Entrance)

Lever Design

D (Dane)

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

10 Year Limited
