Dormakaba

Dormakaba C180D Storeroom Cylindrical Lever Lockset

$391.80
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function F86 – Storeroom
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

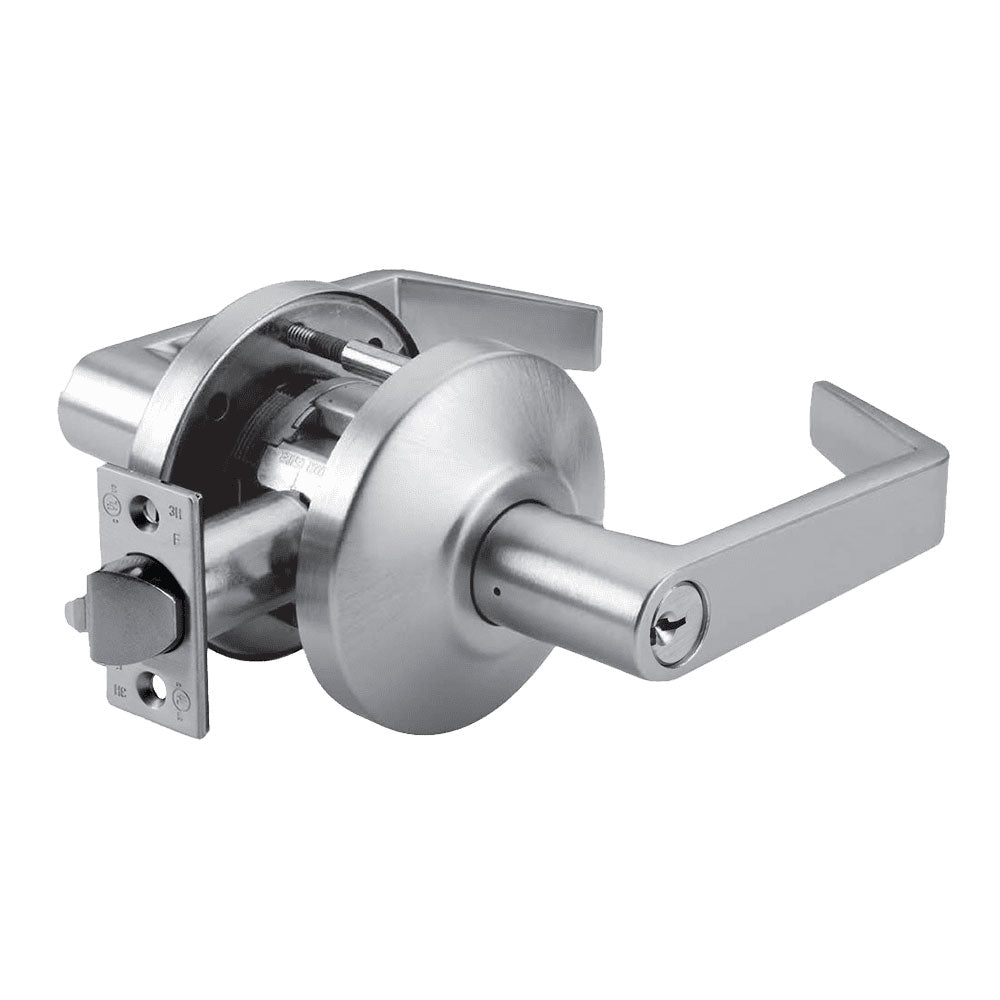

Dormakaba C180D Grade 1 Heavy Duty Cylindrical Lock, Storeroom Function, Conventional Cylinder, Non-Handed

The C100 Series Grade 1 heavy-duty cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability.

ANSI F86 Storeroom Function: Deadlocking latch bolt retracted by key in outside trim. Deadlocking latch bolt operated by inside trim. Outside trim always inoperable.

Exceptionally smooth operation: To ensure exceptionally smooth operation, the C100 Series locks with lever trim incorporate a cast stainless steel retractor combined with roller bearings. This design provides both extremely high strength and an extended service life for the lock mechanism.

Easy installation: C100 Series locksets are easy to install in both wood and hollow metal doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks.

Freewheeling function: All C100 Series operating lever trim features a specially designed freewheeling function to protect the lock from damage caused by excessive torque applied to the lever handles. When locked, the outside lever handle will move freely through a 60° arc without operating the latch bolt. This free movement minimizes the opportunity for damage to the lock mechanism.

Certifications

  • ANSI/BHMA A156.2 Grade 1 certified
  • Made in USA
  • Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility
  • UL listed 3 hour fire rated. Locks with 9/16" throw latch bolts are listed for A label and lesser class doors, 4'0" × 8'0" maximum per leaf
  • California State Fire Marshall approved (CSFM)


Brand

Lever Design

LRC, LCC, LGC, LRE, LGE, LCE

Clutch Lever

Yes

Lock Function

Storeroom

Keyway

Schlage C Keyway

Finishes

626 Satin Chrome, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed up to 3 Hours

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/4" to 2-1/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
