Dormakaba

Dormakaba C110 Passage/Closet Cylindrical Lever Set

$294.84
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function: F75 - Passage
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

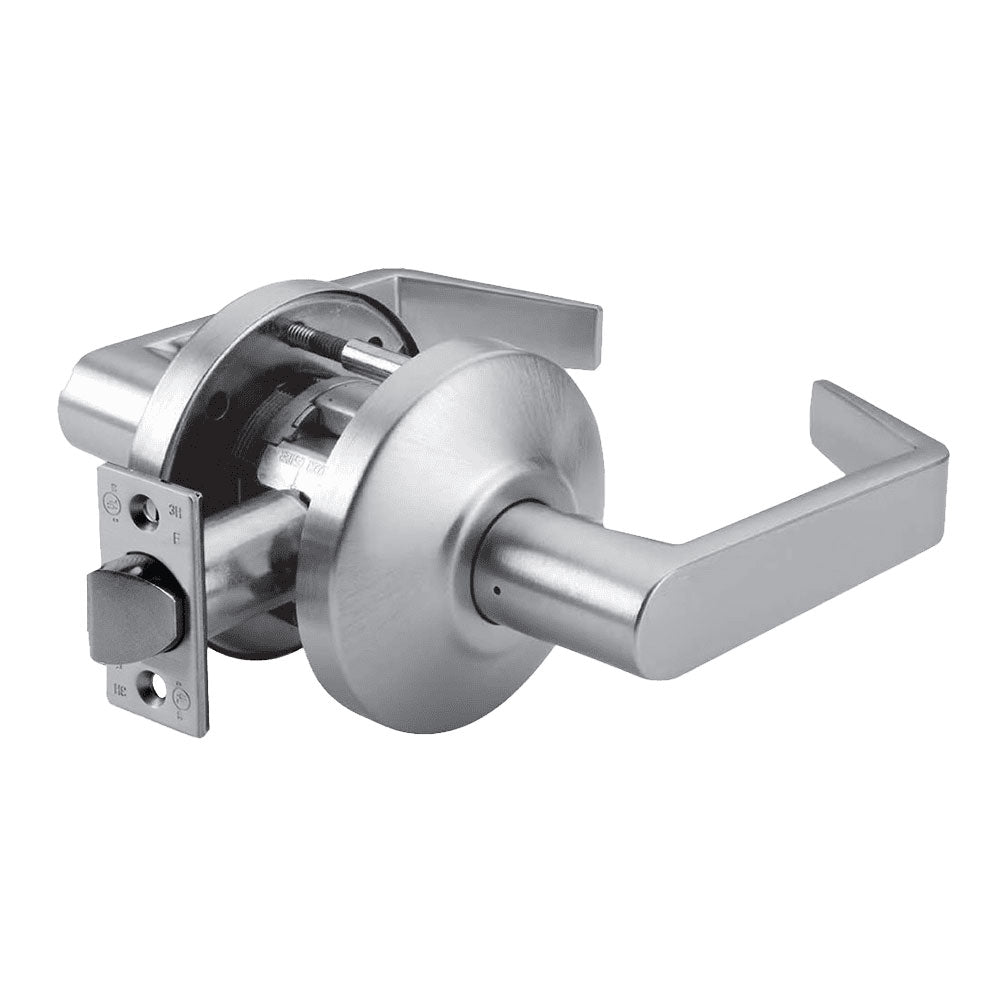

Dormakaba C110 Grade 1 Heavy Duty Cylindrical Lock, Passage Function, Non-Handed

The C100 Series Grade 1 heavy-duty cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability.

ANSI F75 Passage Function: Latch bolt operated by trim from either side at all times.

Exceptionally smooth operation: To ensure exceptionally smooth operation, the C100 Series locks with lever trim incorporate a cast stainless steel retractor combined with roller bearings. This design provides both extremely high strength and an extended service life for the lock mechanism.

Easy installation: C100 Series locksets are easy to install in both wood and hollow metal doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks.

Certifications

  • ANSI/BHMA A156.2 Grade 1 certified
  • Made in USA
  • Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility
  • UL listed 3 hour fire rated. Locks with 9/16" throw latch bolts are listed for A label and lesser class doors, 4'0" × 8'0" maximum per leaf
  • California State Fire Marshall approved (CSFM)

Brand

Lever Design

LRC, LCC, LGC, LRE, LCE, LGE

Lock Function

Passage

Finishes

626 Satin Chrome, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed up to 3 Hours

Backset

2-3/4"

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/4" to 2-1/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
