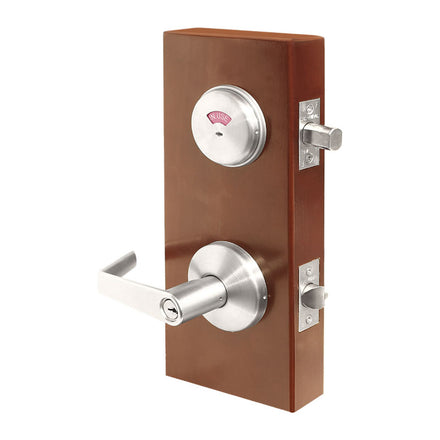

Cal-Royal IND-JHIL05 Indicator Deadbolt Interconnected Storeroom Lock

$147.76
Usually Ships:  10-20 Business Days
  • BHMA Certified ANSI A156.12 Grade 2
  • Indicator Deadbolt Interconnected Storeroom Lock
  • UL listed for 3-hour fire door

Available Options:

Clear

Product Overview

Cal-Royal IND-JHIL05 Indicator Deadbolt Interconnected Storeroom Lock - Grade-2, 4" or 5-1/2" CTC Length, 2-3/4" B.S., T-Strike, US26D Satin Chrome Finish

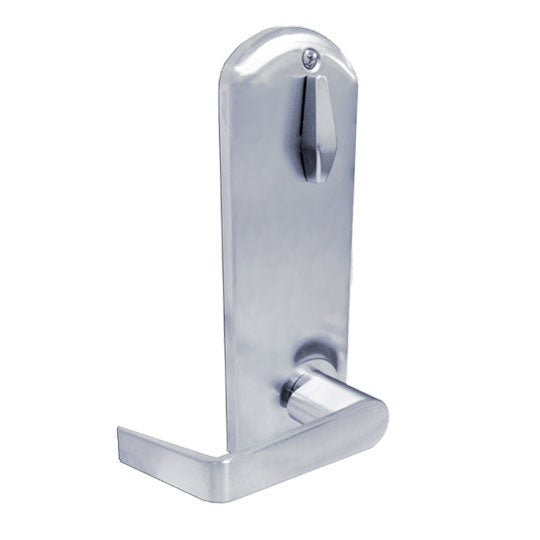

INDICATOR DEADBOLT, STOREROOM LEVER - Deadbolt thrown or retracted by emergency key in upper lock from outside or by thumbturn inside. Deadlocking latch bolt is operated by key outside or by turning inside lever. Inside lever retracts deadbolt and latch bolt simultaneously for immediate exit. Outside lever is always fixed.

  • Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2
  • Lifetime Warranty
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6-Pin “C” keyway cylinder, optional other keyways
  • Optional 4” or 5 ½” CTC Bore
  • Unique individual spring on the exterior and interior side of lever to prevent lever sag
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Double Locking Privacy w/ Occupancy Indicator

Lever Design

JHIL

Keyway

Schlage C Keyway

Backset

2-3/4"

Latch

½” Throw. “UL” Listed for 3-hour doors

Deadbolt

1” Throw

Strike

Standard “T” strike furnished with lockset. 2 ¾” x 1 ⅛” square strike with deadbolt.

Usage

Medium Duty

ANSI/BHMA Standard

BHMA Certified ANSI A156.12 Grade 2

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL Listed for all functions up to 3 hours for “A” label single doors

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"
