Cal-Royal JHIL00 Entrance Double Locking Interconnected Entry Lock

$147.76
Usually Ships:  2-3 Business Days
  • BHMA Certified ANSI A156.12 Grade 2
  • ANSI F97 function - entrance double locking
  • UL listed for 3-hour fire door

Available Options:

Clear

Product Overview

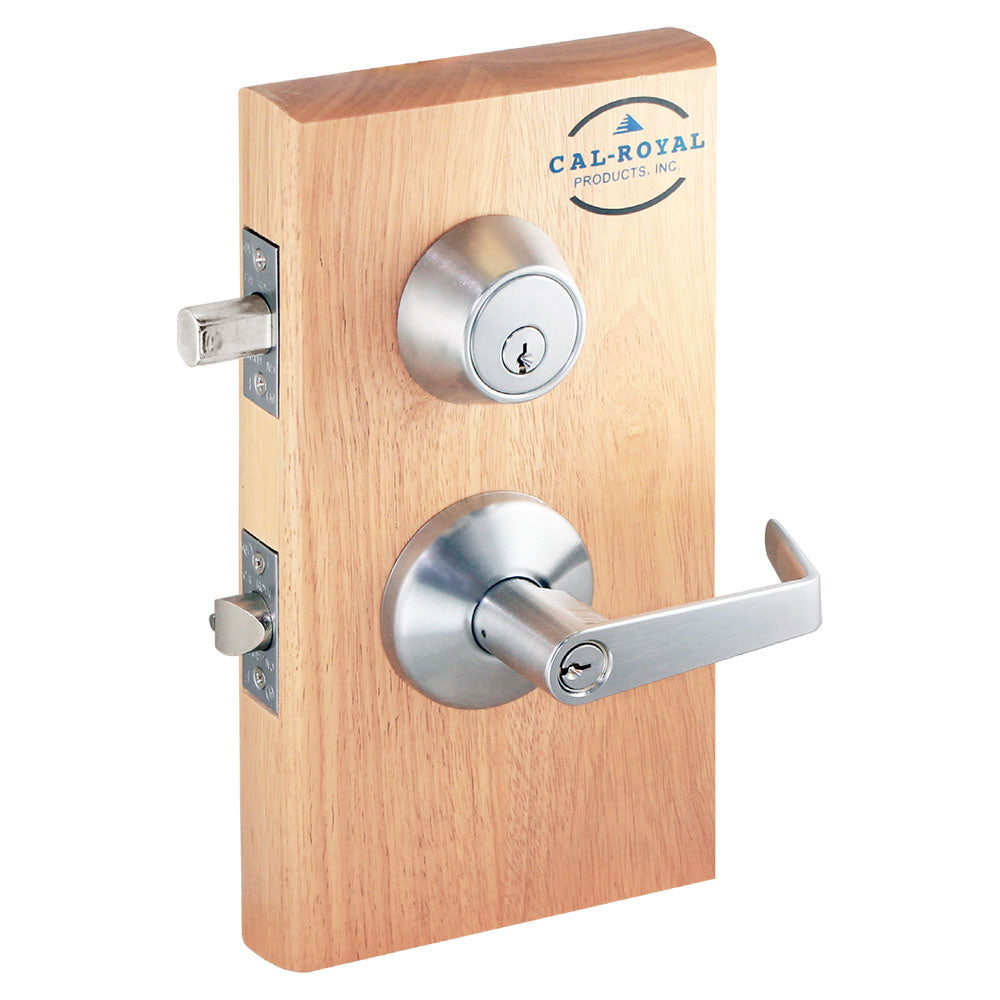

Cal-Royal JHIL00 Entrance Double Locking Interconnected Lock - Grade-2, ANSI F97, 4" or 5-1/2" CTC Length, 2-3/4" B.S., T-Strike, Schlage C Keyway, US26D Satin Chrome Finish

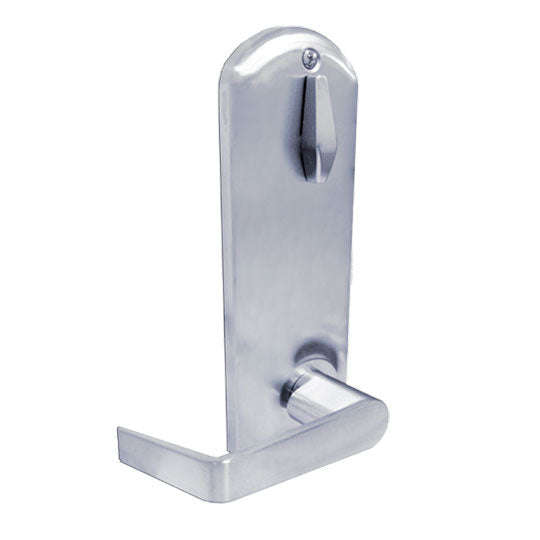

ENTRANCE, DOUBLE LOCKING - Deadbolt thrown or retracted by key in upper lock from outside or by inside turn unit. Dead latch retracted by key in outer when locked by pushing turn button in inner lever. Outer lever may be fixed in locked position by rotating turn button. Turning inside lever retracts deadbolt and latch bolt simultaneously for immediate exit.

  • Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2
  • Lifetime Warranty
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6-Pin “C” keyway cylinder, optional other keyways
  • Optional 4” or 5 ½” CTC Bore
  • Unique individual spring on the exterior and interior side of lever to prevent lever sag
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Double Locking Entry

Lever Design

JHIL

Backset

2-3/4"

Latch

½” Throw. “UL” Listed for 3-hour doors

Deadbolt

1” Throw

Keyway

Schlage C Keyway

Strike

Standard “T” strike furnished with lockset. 2 ¾” x 1 ⅛” square strike with deadbolt.

Usage

Medium Duty

ANSI/BHMA Standard

BHMA Certified ANSI A156.12 Grade 2

ANSI Function

F97

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL Listed for all functions up to 3 hours for “A” label single doors

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"
