Alarm Lock

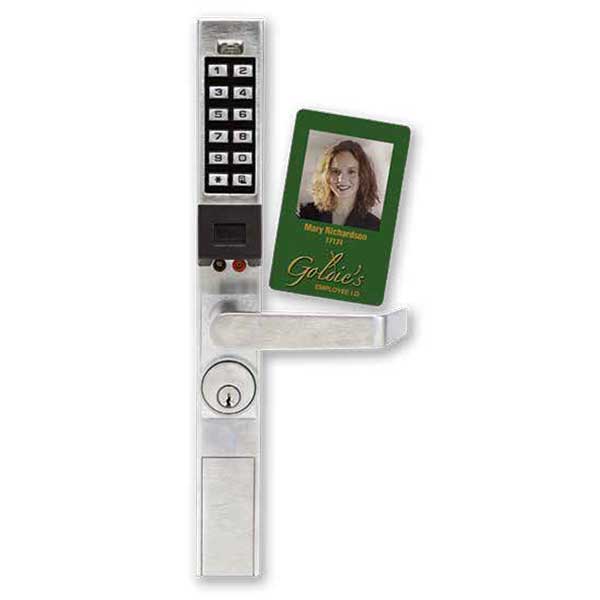

Alarm Lock PDL1300 Pushbutton Trim for Narrow Stile Aluminum Doors with Prox Reader and Audit Trail

$850.38
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty Grade-1, standalone electronic lock with prox reader
  • Designed to work with Adams Rite® latch series
  • Mechanical key override, Schlage C keyway

Available Options:

Clear

Product Overview

Alarm Lock DL1300 Pushbutton Aluminum Door Trim, with Prox Reader, 2000 Users, 40,000 Event Audit Trail, Straight Lever

Narrow stile prox ID card PC-programmable model with audit trail

Now get convenient keyless PIN code or Prox access anywhere there’s a glass door with Trilogy Weather Proof Access Keypads.

  • Aluminum door retrofit outside trim for Adams Rite® 710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
  • Built-in HID prox reader, supports up to 2000 users with HID Prox ID cards or/fobs or 3-6 digit PIN codes
  • Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
  • Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad
  • 40,000 event time-/datestamped audit trail by user
  • 500 event schedule/real timeclock (e.g. lock/unlock by time)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
  • Long-life, battery-operated for 65,000 cycles, typical on 2 lithium 3V batteries, supplied; low battery alert
  • Compact styling 14-3/8"H x 1-5/8”D x 1-3/4"W
  • Key override mortise cylinder, 1-1/4” supplied. (Schlage C keyway)
  • Backsets 31/32",1-1/8" and 1-1/2"; Stile thickness 1-3/4"
  • Non-handed; fully field-reversible
  • ideal for universities, hospitals,  laboratories, airports, office buildings & retailers
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze

Usage

Heavy Duty

Lock Function

Pushbutton Keypad

ANSI Grade

ANSI Grade 1

Power

Long-life, battery-operated for 65,000 cycles, typical on 2 lithium 3V batteries, supplied; low battery alert

Cylinder

Mortise Cylinder (included)

Keyway

Schlage C Keyway

Door Thickness

1-3/4"

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Reader Type

Keypad, Proximity

Door Applications

1-3/4" Aluminum Doors
