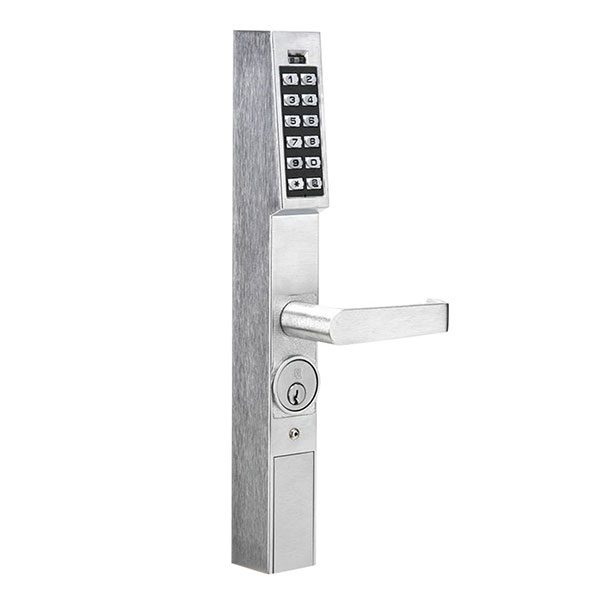

Alarm Lock DL1300 Pushbutton Trim for Narrow Stile Aluminum Doors with Audit Trail

$586.64

This item ships FREE! Usually Ships: 1-2 Business Days

Available Options:

Finish

Quantity:

Added to Cart

Alarm Lock DL1300 Pushbutton Aluminum Door Trim, 2000 Users, 40,000 Event Audit Trail, Straight Lever

Now get convenient keyless PIN code or Prox access anywhere there’s a glass door with Trilogy Weather Proof Access Keypads.

Aluminum door retrofit outside trim for Adams Rite® 710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad
DL1300 Series supports 2000 users and includes 40,000 event audit trail and 500 event schedule. Keypad or PC programmable.
Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Long-life, battery- operated for 100,000 and 80,000 cycles respectively, typ.on 2 lithium 3V batteries, supplied; low battery alert
Compact styling 14-3/8"H x 1-5/8”D x 1-3/4"W
Key override mortise cylinder, 1-1/4” supplied. (Schlage C keyway)
Backsets 31/32",1-1/8" and 1-1/2"; Stile thickness 1-3/4"
Non-handed; fully field-reversible

Brand	Alarm Lock
Finishes	US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze
Usage	Heavy Duty
Lock Function	Pushbutton Keypad
ANSI Grade	ANSI Grade 1
Power	Battery- operated for 100,000 and 80,000 cycles respectively, typ.on 2 lithium 3V batteries, supplied
Cylinder	Mortise Cylinder (included)
Keyway	Schlage C Keyway
Door Thickness	1-3/4"
Handing	Non Handed – Completely Reversible
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Reader Type	Keypad
Door Applications	1-3/4" Aluminum Doors
