Product Overview

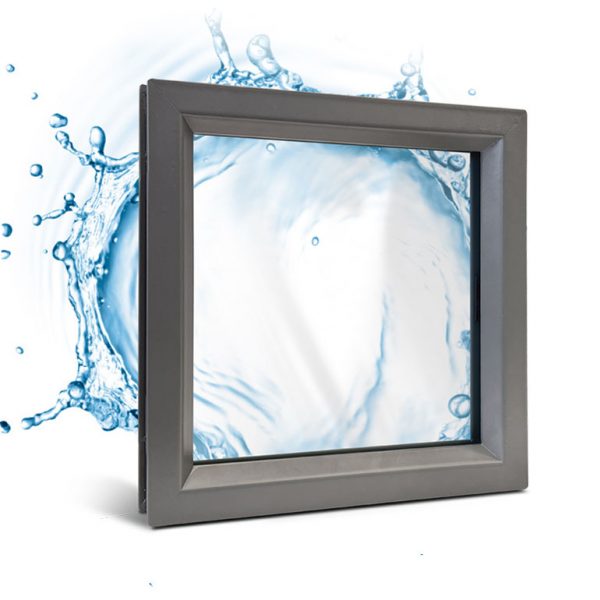

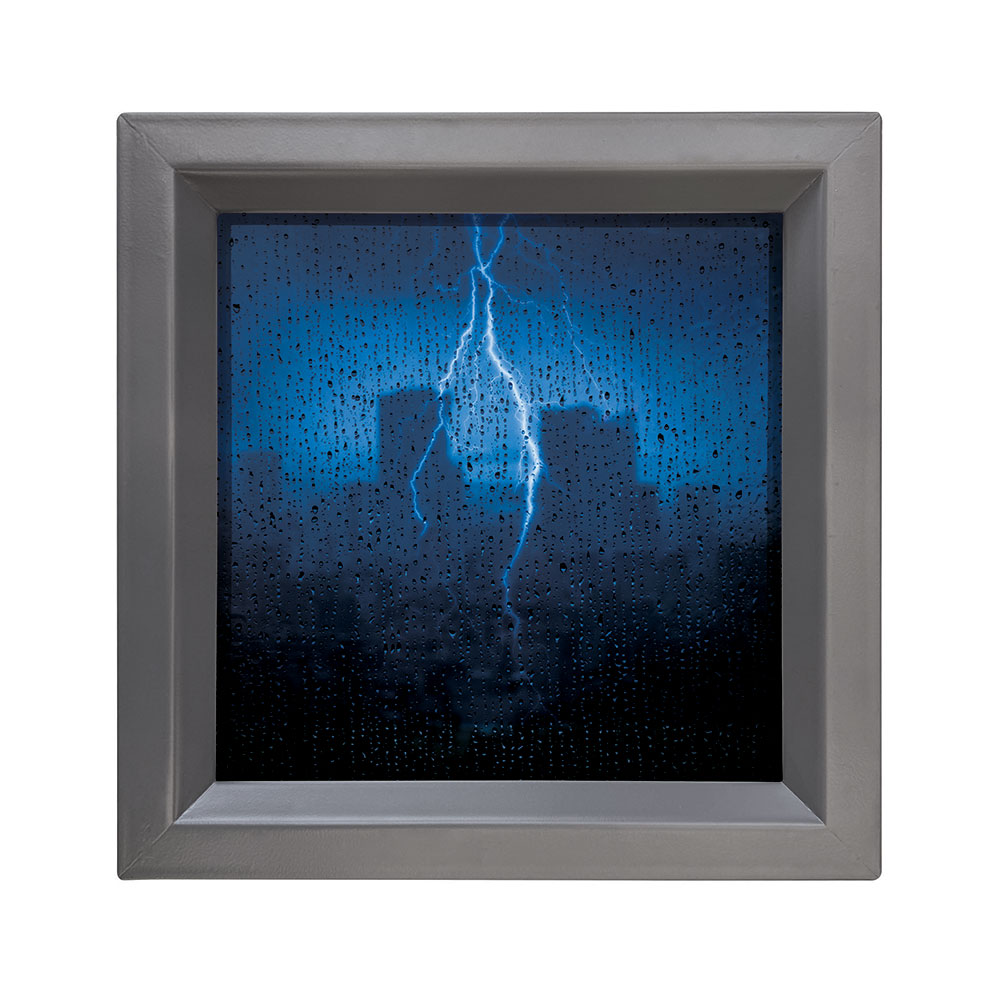

Anemostat/NGP STORM-PRO™-HR Low-Profile Hurricane-Rated Lite Kit
Hurricane-Ready. Style-Approved.
Introducing the newly hurricane-rated line of lite kits — built tough to weather the storm and look good doing it. With a component-level Florida Building Code approval, you have the freedom to use any hurricane-rated hollow metal door you choose. Providing superior performance and flexibility over the competition these new kits aren’t just a breeze to install — they’re a sure thing — engineered to stand up to the worst Mother Nature can hurl your way.

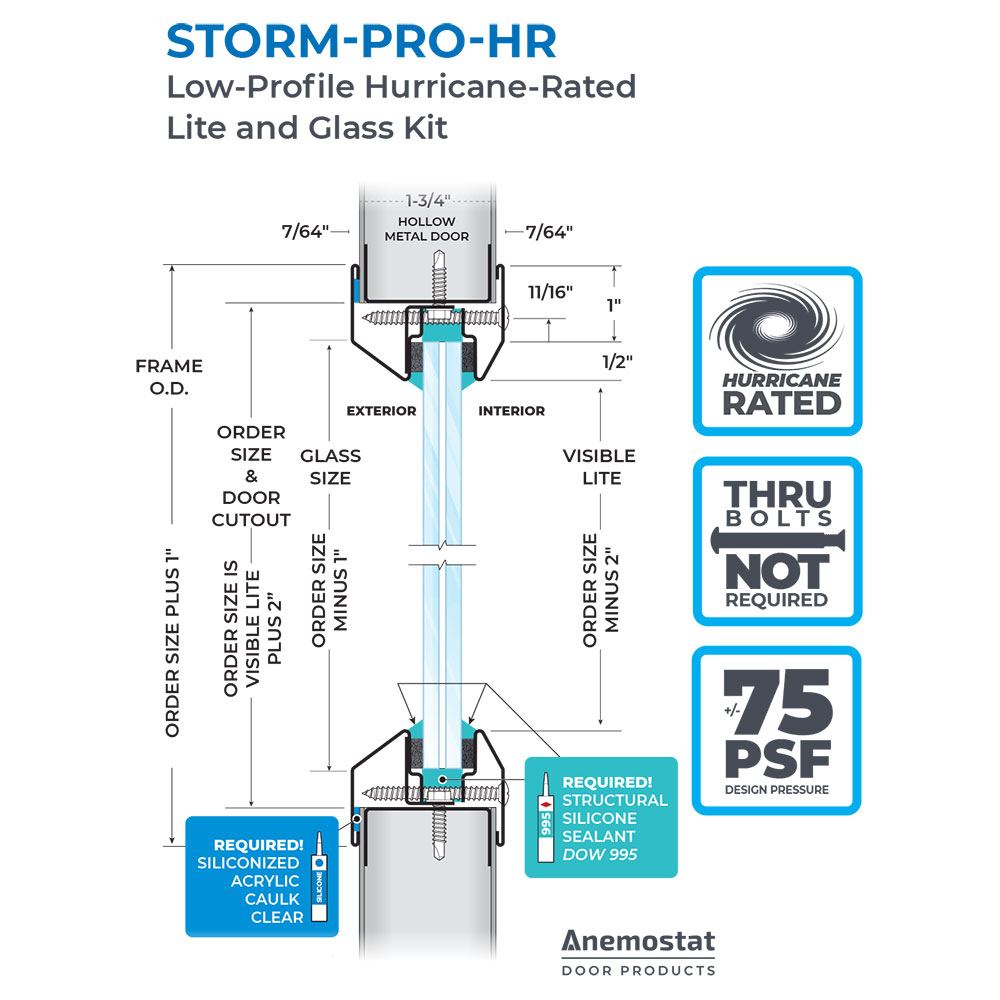

- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- For 1-3/4″ Doors
- 20 Ga. Galvanneal A40 Steel
- Mitered and Welded Corners
- Countersunk Mounting Screw-Holes
- #8 X 1-3/4″ Phillips Head SMS
- Gray Primer (GPZ) Powder Coat Finish
- 1/2″ Laminated Glass: 2 pcs. 3/16″ Clear Glass with PVB Interlayer
- Structural Silicone Sealant DOW 995
- Siliconized Acrylic Caulk, White
- Hurricane-Rated
- Florida Building Code #FL47124
- Design Pressure = +/- 75 PSF
- Missile level “D” and includes Wind Zone 4 as defined in ASTM E 1996 and FBC Sections 1609.1.2.2 & R301.2.1.2.1.
- Meets the water infiltration requirements for the “HVHZ
- Hazard – Hurricane
- This Product is Not Rated for Use on Fire-Rated Doors

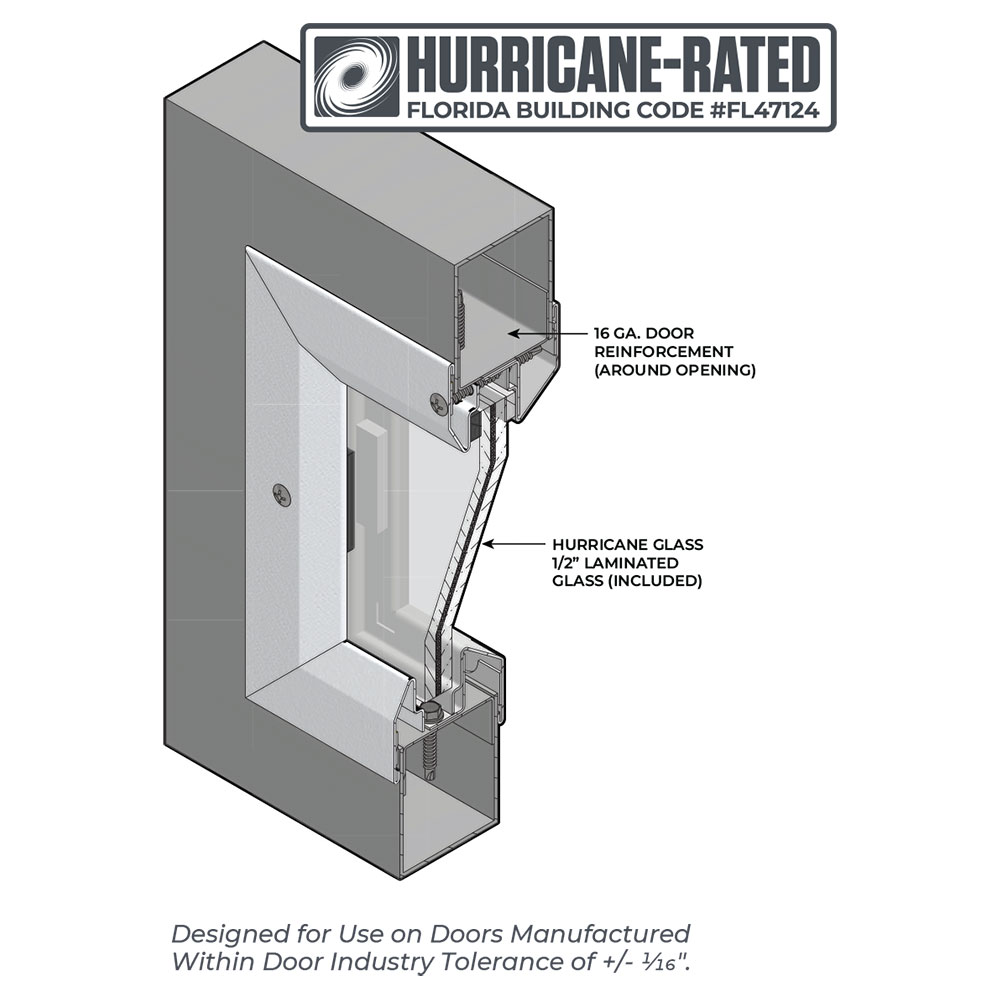

- Designed for Use on Doors Manufactured Within Door Industry Tolerance of +/- 1/16″
Brand | |
---|---|
Order Size | 5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 8" x 36", 12" x 12", 18" x 18", 18" x 24", 18" x 30", 18" x 32", 18" x 60", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64" |
Finishes | GPZ – Gray Primer |
Frame Profile | Low |
Glass Type | Clear Laminated Glass |
Glass Thickness | 1/2" |
Frame Construction | 18 Ga. Galvanneal A40 steel |
Frame Fasteners | #8 x 1-3/4" Phillips head SMS |
Door Thickness | 1-3/4" |
Hurricane / Windstorm Approval | Florida Building Code #FL47124 – Design Pressure = +/- 75 PSF Missile level "D" and includes Wind Zone 4 as defined in ASTM E 1996 and FBC Sections 1609.1.2.2 & R301.2.1.2.1. Meets the water infiltration requirements for the "HVHZ. Maximum Size 30" x 64" Hazard – Hurricane |
Fire Rating | None |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
