Schlage ND52PD RHO (Rhodes) Keyed Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

$681.66
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1

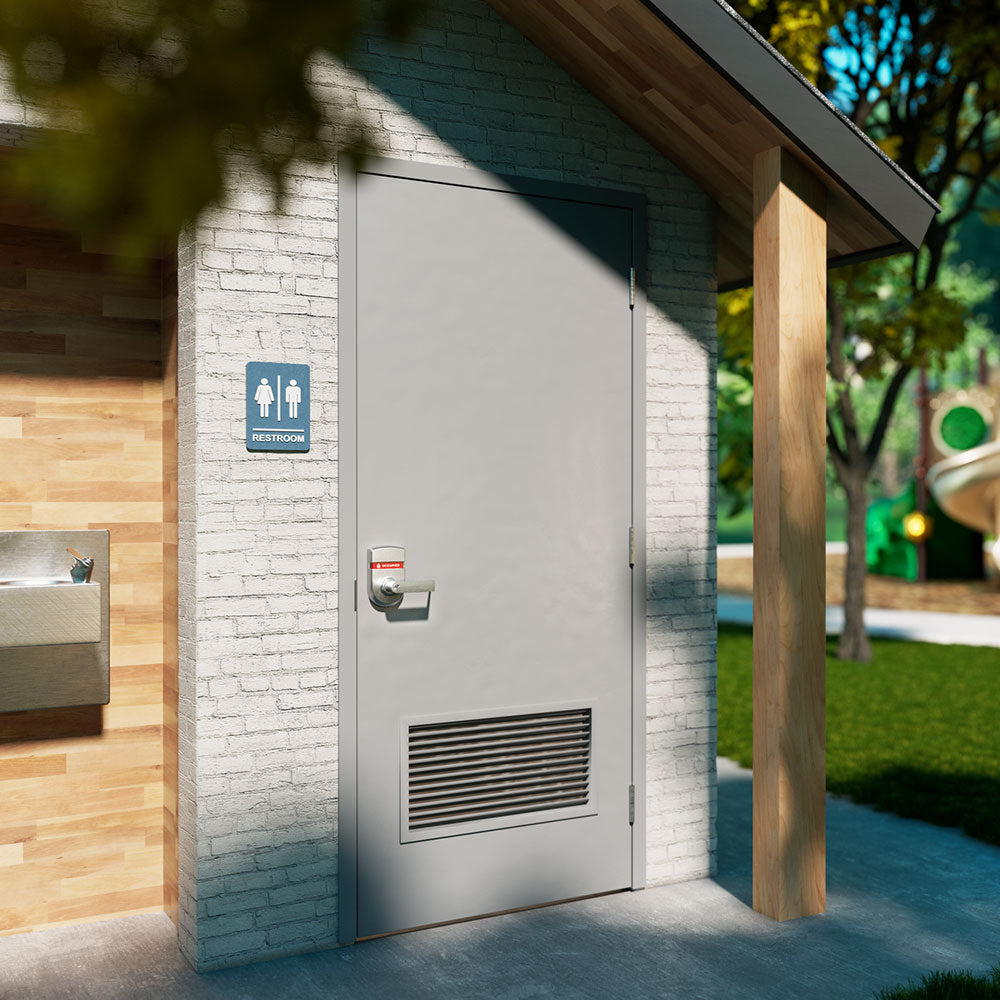

  • Ideal for high-use commercial restroom doors

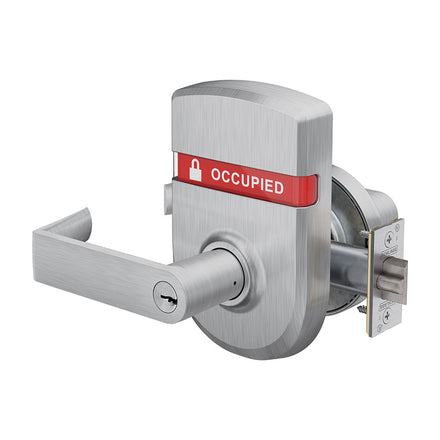

  • Includes outside indicator (OCCUPIED/VACANT)

Available Options:

Clear

Product Overview

Schlage ND52PD RHO (Rhodes) Grade-1 Keyed Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

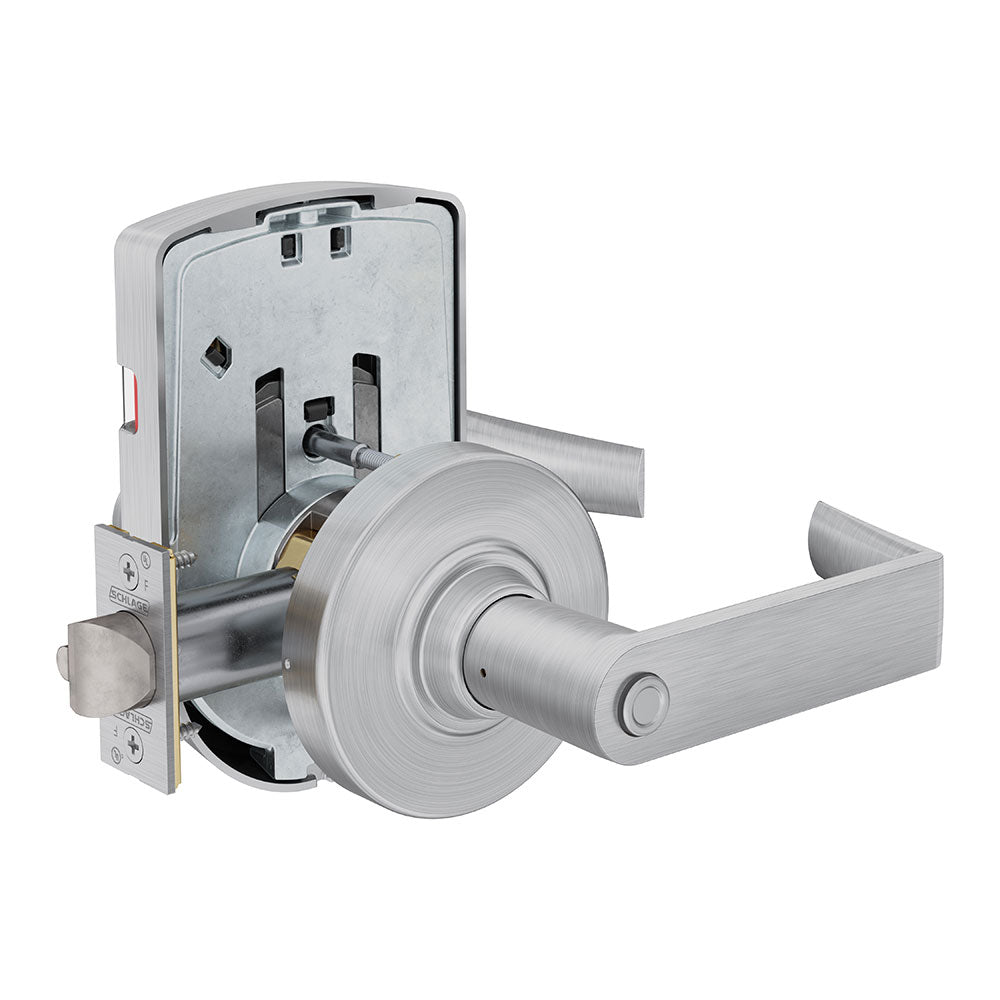

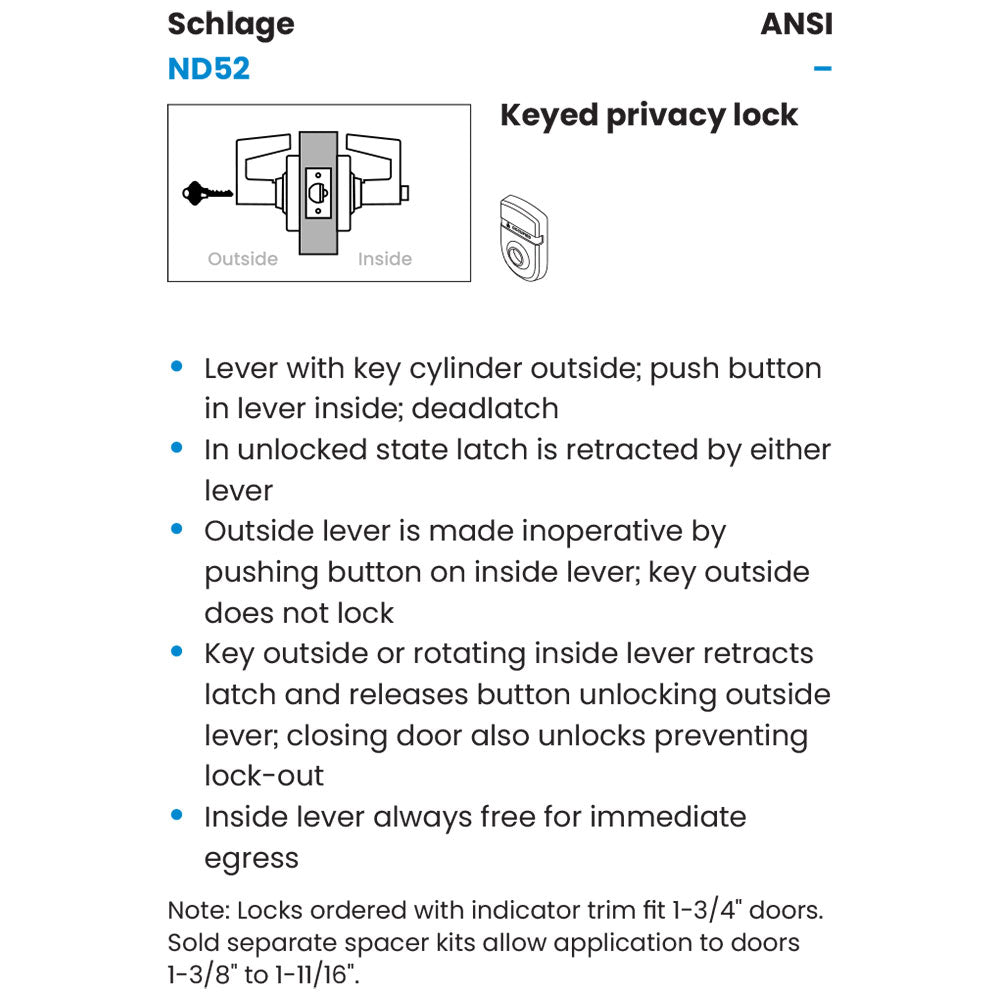

Lever with key cylinder outside; push button in lever inside; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by pushing button on inside lever; key outside does not lock • Key outside or rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lock-out • Inside lever always free for immediate egress

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

626 Satin Chrome, 622 Matte Black, 613 Oil Rubbed Bronze, 643e Aged Bronze, 619 Satin Nickel, 626AM Satin Chrome Antimicrobial

Lock Function

Privacy with Indicator

Keyway

Schlage C Keyway, Schlage S123 Keyway

Usage

Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front

Handing

Handed – LH, RH

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

RHO (Rhodes)

Door Thickness

1-3/4"

Warranty

10 Years
