2731T-689

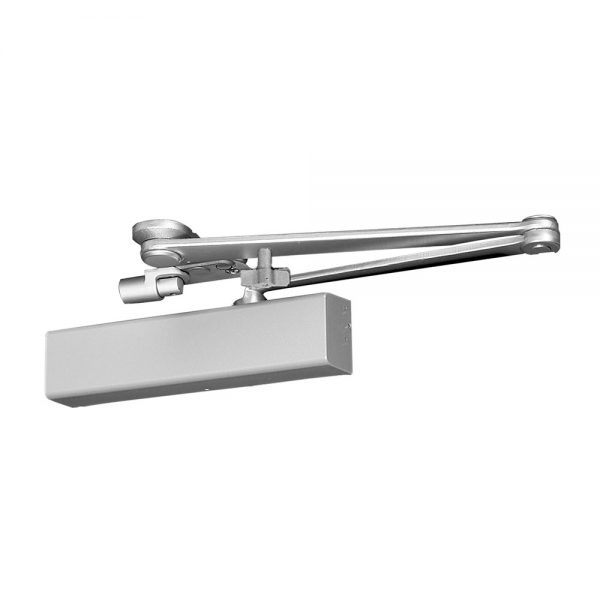

Accentra (Formerly Yale) 2731T Door Closer with Heavy Duty Hold Open Parallel Arm and Spring Stop

Usually Ships: 20-30 Business Days
  • ANSI/BHMA Grade 1 Certified
  • Includes heavy-duty hold-open arm with spring stop
  • Adjustable spring size 1-6

Available Options:

Product Overview

Accentra (formerly Yale) 2731T Door Closer with Heavy-Duty Hold Open Parallel Arm with Thumbturn and Spring and Removable Stop

The 2700 Series is ideal for commercial applications where ease of use, installation, and aesthetics are required while remaining cost-effective.

Holder/Stop arms incorporate a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments

  • Stop arm is intended for use where an auxiliary door stop cannot be used and low to moderate abuse is anticipated
  • Stop is removable to allow for additional applications where auxiliary door stops are installed
  • ANSI/BHMA Grade 1 Certified
  • Adjustable spring sizes 1-6
  • Non-handed
  • Cast iron body
  • Full plastic cover
  • Spring power adjustment
  • Sleeve nuts included with all models
Brand

Templating (Hole Pattern)

3/4" x 12"
Finishes

689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), BSP Black Suede Powder Coat
Mounting Options

Parallel Arm (Push Side)
Usage

Medium Duty
ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified
Fire Rating

Non-Rated with Hold Open Arm
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
Handing

Non-Handed
Cover

Full Cover
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Door Applications

Hollow Metal, Wood or Aluminum
