Accentra (Formerly Yale)

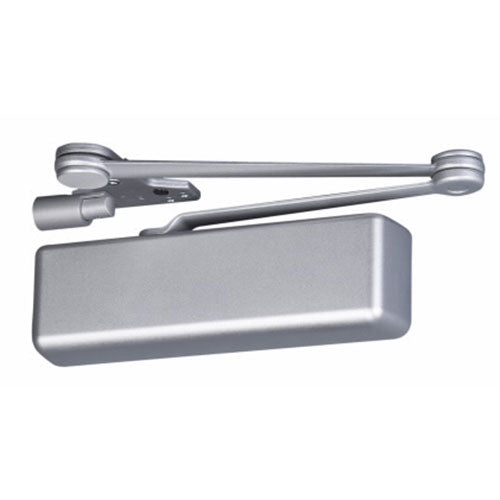

Accentra (Formerly Yale) 5831T Door Closer with Heavy Duty Hold Open Parallel Arm and Spring Stop

$265.76
Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified
  • Includes hold open arm with spring and stop
  • Parallel arm mount

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 5831T Heavy-Duty Hold Open Parallel Arm with Thumbturn, Spring, and Removable Stop

  • Holder/Stop Spring arms incorporate a buffer spring that provides greater protection at the end of the door opening cycle
  • Spring is removable
  • ANSI/BHMA Grade 1 Certified
  • Adjustable spring sizes 1-6
  • Non-handed
  • Cast iron body
Brand

Templating (Hole Pattern)

2-1/4" x 5"

Finishes

BSP Black Suede Powder Coat, 690 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Mounting Options

Parallel Arm (Push Side)

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire-Rating

Non-Rated with Hold Open Arm

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Applications

Hollow Metal, Wood or Aluminum
