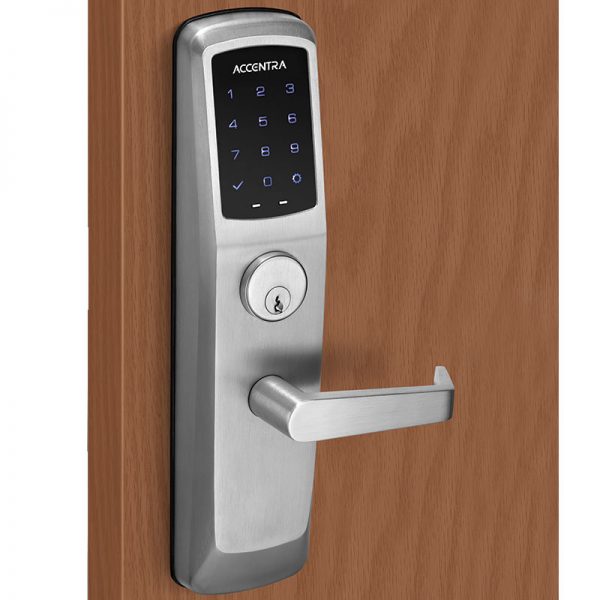

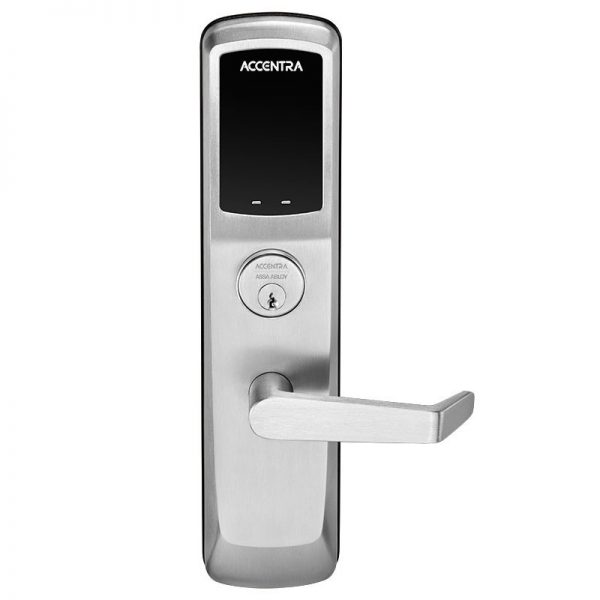

Yale AU-NTT620-NR-626 nexTouch Capacitive Touchscreen Keypad Rim Exit Device Trim

Usually Ships: 2-3 Days
  • Standalone Electronic Rim Exit Device Trim
  • Compatible w/ Yale, Von Duprin, Sargent, Corbin Russwin, and more
  • Up to 500 Unique PIN Codes – Mechanical Key Override

Available Options:


Yale nexTouch exit device trim – Upgrade your exit device with key-free convenience

Whether for a new opening or an existing door, the Yale nexTouch Keypad Exit Trim is the perfect way to upgrade almost any exit device for easy, key-free access. Perfect for a variety of applications, including delivery doors, stairwells, or on an existing exit device, Yale nexTouch Keypad Exit Trim offers a new level of convenience to your commercial facility.


  • Easy Traffic Control: Engineered to provide an easy-to-use access control solution to protect your facility and personnel
  • Retrofit-friendly: Able to be installed in place of mechanical exit trim on many pushpad exit devices, including competitor models
  • Key-free Convenience: Reduces investment and maintenance costs associated with managing keys
  • ANSI/BHMA: Grade 1 certification ensures long life and reliability


  • Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
  • Patented adjustable mounting posts enable retrofit onto many exit device models without any additional hardware
  • Up to 500 user codes in keypad only operation
  • 9V battery power backup prevents lockout even if the batteries fail
  • Modular technology allows users to upgrade to data-on-card or wireless technologies as system requirements change and grow
  • Keypad lockout feature: Deters tampering by disabling the keypad for a default of 180 seconds after five (5) successive failed attempts.

Device Compatibility



626 Satin Chrome


2153 Yale E1R Para Keyway, 2553 Schlage C Keyway, K660 SFIC Housing (less core), Less Cylinder (no cylinder)

Lock Function

Exit Device Trim

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1


Heavy Duty

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Lever Design

AU (Augusta)


Schlage C Keyway, Yale E1R (Para) Keyway


Easily Re-handed in the field – Shipped as RHR


Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low.

Door Thickness



3 Year Limited

Yale nexTouch Keypad Exit Trim Installation and Programming Instructions
