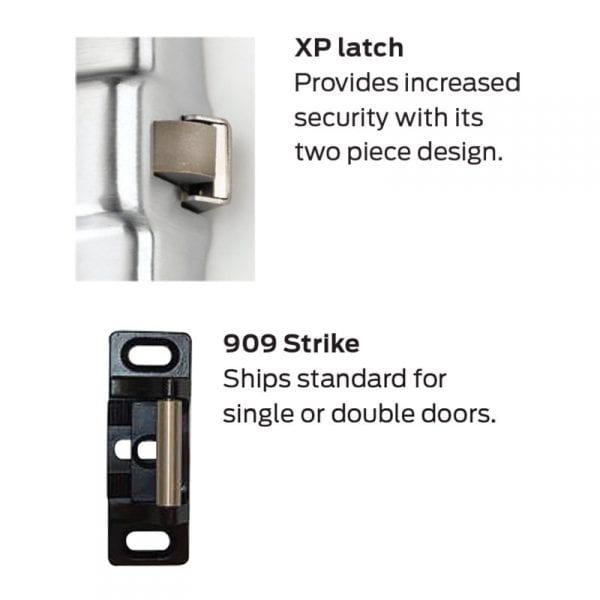

von-duprin-xp-latch-with-909-strike
von-duprin-xp-latch-with-909-strike

Von Duprin XP99EO Extra Protection Panic Rim Exit Device

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Certified Grade-1, Made in USA
  • For doors that require increased security
  • Features XP patented latch bolt design

Available Options:

Clear

Product Overview

Von Duprin XP99EO Grade 1 Extra Protection Rim Exit Device, Wide Stile Pushpad, Exit Only, Less Trim

XP99 Rim exit devices are designed for single and double doors with mullion that require increased security. The XP latch provides twice the static load force resistance of standard exit devices. The “smart” latch changes shape when subjected to external forces. This design enables the exit door to withstand an external attack and remain secure. Additionally, the patented latch bolt design provides greater, longer-lasting latch bolt to strike contact which is not easily affected by the twisting motion of a weakened frame, resulting in an opening that will remain strong. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for panic exit hardware.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim sold separately)
  • US26D/626 satin chrome finish
  • Deadlocking 3/4″ latchbolt standard
  • 909 roller strike standard

Brand

Finishes

US26D (626) Satin Chrome
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

Non-Fire-Rated
Hand

Non-handed
Latchbolt

Deadlatching, 3/4" throw
Dogging Feature

Half turn hex dogging standard
Stile Type

Wide (Standard)
Strike

909 Strike Standard
Center Case

8" x 2-3/4" x 2-3/8"
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners

Includes screws for metal and wood doors
Door Applications

1-3/4″ Thick Doors
