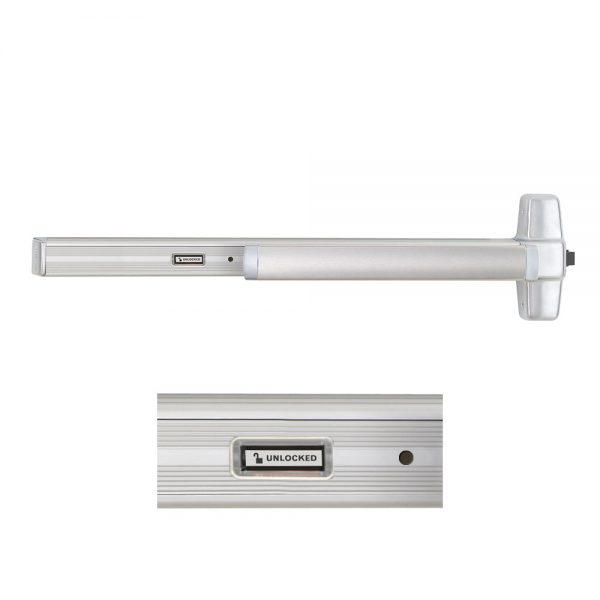

Von Duprin HDSI99EO Panic Rim Exit Device with Hex Dogging Indicator

Von Duprin HDSI99EO Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Less Trim, Hex Dogging Indicator

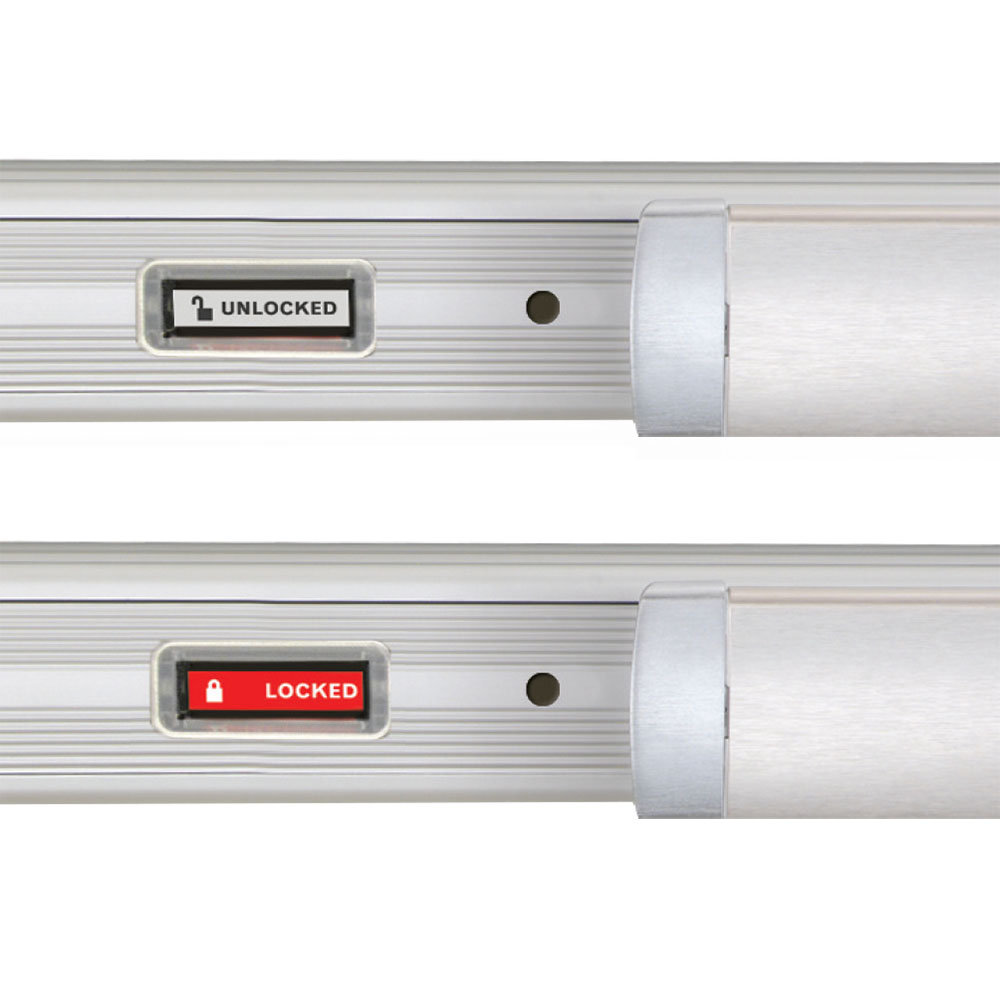

Hex Dogging Security Indicator (HDSI) provides at-a-glance verification of a door’s status from inside the room. Visible “LOCKED” and “UNLOCKED” indicators show whether the device is dogged or undogged.

Designed for high traffic institutional environments, such as schools and hospitals, the visual verification reduces the time to tour a facility and ensure that each door is secure with at-a-glance visual verification.

• EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
• Enables user to quickly determine the status of the opening while remaining on the interior/secure side
• Visual indication of whether the exit device is dogged or undogged
• Maintains free egress as required by code while still securing the door for lockdown
• For use with single doors or double doors with mullions
• Deadlocking Latchbolt Standard
• Stock Sizes: 3′ and 4′ – Cut to size in the field
• 299 Roller Strike Standard
• ANSI/BHMA Certified, Grade-1
