Von Duprin CDSI99EO Panic Rim Exit Device with Cylinder Dogging Indicator

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Requires 1-1/4″ mortise cylinder (sold separately)
  • Indicator shows whether the push pad is undogged or dogged

Available Options:

  • Total

Product Overview

Von Duprin CDSI99EO Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Less Trim, Cylinder Dogging Indicator

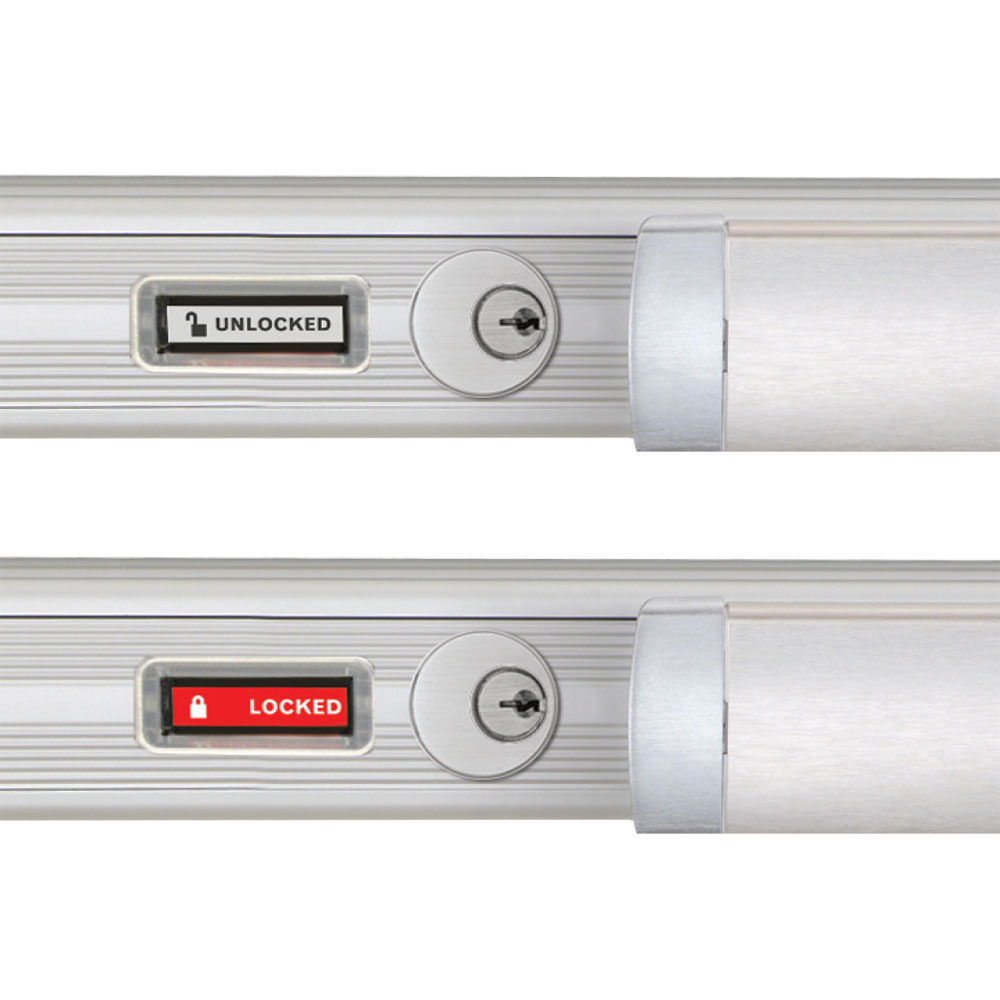

Cylinder Dogging Security Indicator (CDSI) provides at-a-glance verification of a door’s status from inside the room. Visible “LOCKED” and “UNLOCKED” indicators show whether the device is dogged or undogged.

Designed for high traffic institutional environments, such as schools and hospitals, the visual verification reduces the time to tour a facility and ensure that each door is secure with at-a-glance visual verification.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Enables user to quickly determine the status of the opening while remaining on the interior/secure side
  • Visual indication of whether the exit device is dogged or undogged
  • Maintains free egress as required by code while still securing the door for lockdown
  • For use with single doors or double doors with mullions
  • Deadlocking Latchbolt Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in the field
  • 299 Roller Strike Standard
  • Requires a standard 1-1/4” mortise cylinder with an inverted straight cam (sold separately)
  • ANSI/BHMA Certified, Grade-1

Brand

Finishes

313 Dark Bronze Anodized, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Mechanical Options

Cylinder Dogging with Indicator
Fire Rating

Non-Fire-Rated
Hand

Non-handed
Latchbolt

Deadlatching, 3/4" throw
Dogging Feature

CDSI Cylinder Dogging with Indicator
Cylinder

Requires mortise cylinder (sold separately)
Strike

299 roller strike standard
Stile Type

Wide (Standard)
Center Case

8" x 2-3/4" x 2-3/8"
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners

Includes screws for metal and wood doors
Door Applications

1-3/4″ Thick Doors
Warranty

10 Years
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions
