Von Duprin 99L-F-2SI Fire-Rated Rim Exit Device with Lever, Double Cylinder with Security Indicator

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Includes 996L outside lever (cylinder sold separately)
  • Includes 2SI security indicator inside (cylinder sold separately)

Available Options:

Von Duprin 99L-_-F-2SI Grade 1 Rim Exit Device with Lever Trim, 2SI Double Cylinder with Security Indicator, Wide Stile Pushpad, Classroom Function Lever with Escutcheon

High-performance, wide stile rim exit device with heavy-duty lever trim for high-use and abuse applications

Schools, universities, hospitals and other facilities face unprecedented challenges and must maintain code compliance while hardening security. Von Duprin® has developed indication solutions that support this by allowing the user to remain on the secure side of the door and maintain free egress. The -2SI has an interior key cylinder which locks or unlocks the lever trim from interior side of the door. The accompanying directional indication aids in operation.

  • Indicator requires Schlage rim cylinder 20-021 (keyed) or XB11-979 or XB13-379 (thumbturns) with vertical tailpiece – sold separately
  • Outside lever trim requires Schlage 20-022 or comparable rim cylinder with horizontal tailpiece– sold separately
  • Designed with reliability and durability in mind for high use and abuse environments
  • Enables user to quickly determine the status of the opening while remaining on the interior/secure side

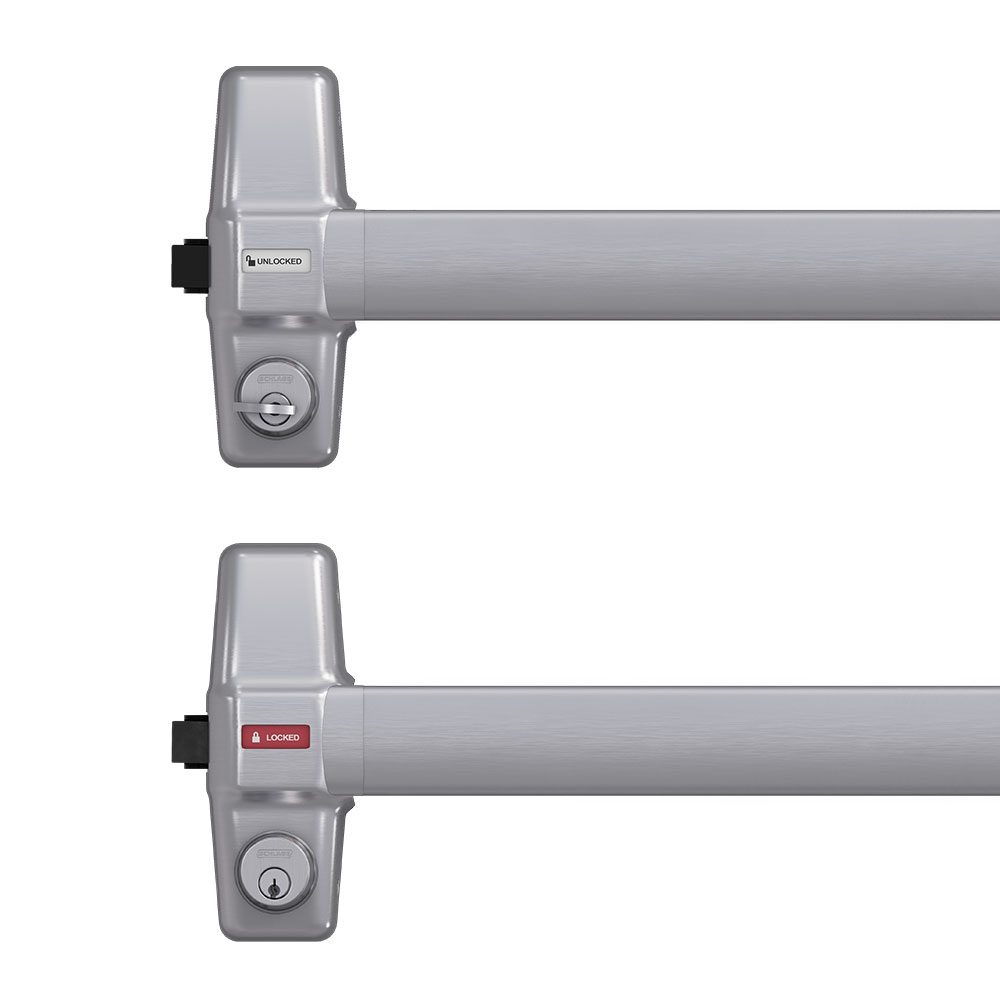

  • Security indicator with clear LOCKED/ UNLOCKED icons and words behind tamper-resistant window
  • Pad printed icons provide a clear direction of rotation to secure opening
  • Maintains free egress as required by code while still securing the door for lockdown
  • Designed for high use and abuse in commercial and institutional applications
  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

996L Breakaway Lever Trim has become the standard lever trim offering on 99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.

  • ANSI Function: 08
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • Requires rim cylinder (sold separately)

Brand

Finishes

US26D (626) Satin Chrome

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Includes Trim

Yes

Trim

996L (Entry – Key Locks & Unlock Lever)

Lever Design

03, 06, 07, 17, LAT (Latitude)

Stile Type

Wide (Standard)

ANSI Function

F08

Cylinder

Outside trim requires keyed rim cylinder, Inside indicator requires key or thumbturn rim cylinder (sold separately)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

UL Listed A or B Label (3 Hours)

Latchbolt

Deadlatching, 3/4" throw

Strike

299F fire-rated roller strike

Fasteners

Includes screws for metal and wood doors

Dogging Feature

None

Mechanical Options

2SI Double Cylinder with Security Indicator

Door Applications

1-3/4″ Thick Doors

Warranty

10 Years

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
