Von Duprin 98EO/98EO-F Rim Panic Exit Device

$1,376.10
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Designed for high use and abuse applications
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

Product Overview

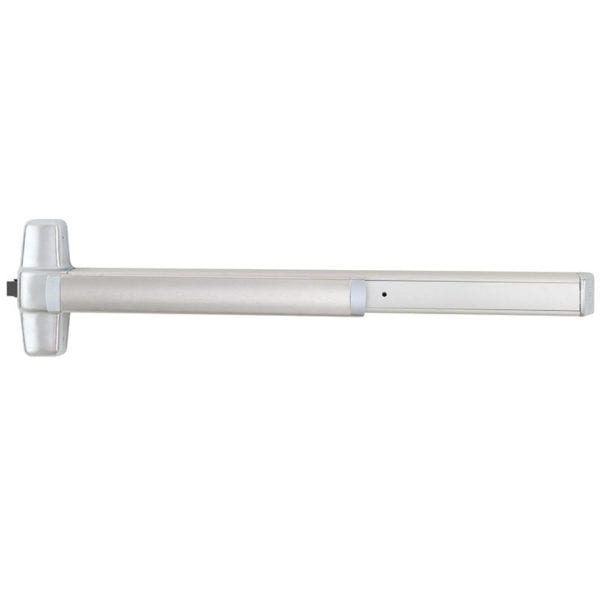

Von Duprin 98EO Grade-1 Rim Exit Device, Wide Stile Pushpad, Panic Rated, Exit Only

The 98 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 98 Series is a high-performance heavy-duty push pad exit device.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • The 98 Series features a smooth mechanism case
  • Deadlocking Latchbolt Standard
  • 98EO-F Model UL Listed (3 Hour Fire-rated)
  • Stock Sizes: 3′ and 4′ – Cut to size in the field
  • The 98 Series features a smooth mechanism case
  • 299 Roller Strike Standard (F299 Strike w/ 98EO-F) – 499F Strike Required (sold separately) with use of 9854/9954 mullions
  • UL listed for panic exit hardware



Brand

Finishes

US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US28 (628) Anodized Aluminum, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, US26D-AM (626AM) Satin Chrome Antimicrobial, 313 Duranodic Dark Bronze, US15 (619) Satin Nickel

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Fire-Rating

98-EO: Non-Fire-Rated - 98-EO-F: UL Listed A or B label Fire-Rated (3 Hours)

Hand

Non-handed

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

299 roller strike standard, 299F strike with fire-rated device

Stile Type

Wide (Standard)

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Usage

Heavy Duty

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy American Act - Made in USA
