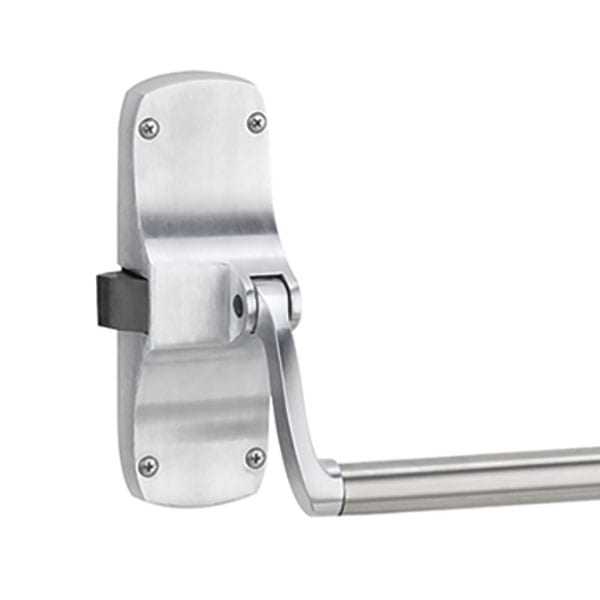

Von Duprin 88EO Rim Panic Exit Device

The 88 Series are exit device crossbars with a classic design. The 88 Series is a standard device for applications where a crossbar is preferred and is ANSI/BHMA A156.3, 2008 Grade 1 certified.

• US26D Satin Chrome Finish
• EO = Exit Only (Trim Sold Separately)
• Device centerline: 39-13/16″
• Crossbar centerline to finished floor: 36-13/16″ at center
• Lock stile case: 8-1/4″ X 2-3/4″ x 15/16″
• Hinge stile case: 6″ X 1-3/4″ x 15/16″
• Crossbar tubing: 1″ (25 mm) outside diameter
• Projection: Neutral – 4-3/4″ – Depressed – 4″
• Fasteners: All necessary mounting fasteners are included
• Cylinder Plate for NLOP Function – included with EO device
