Von Duprin

Von Duprin 7527EO-F Fire-Rated Narrow Stile Surface Vertical Rod Exit Device

$1,585.79
This item ships FREE! Usually Ships:  20-30 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • UL listed fire exit hardware, up to 3 hours
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

Product Overview

Von Duprin 7527EO-F Grade 1 Surface Vertical Rod Exit Bar, Narrow Stile Pushpad, Fire-Rated, 84″ Door Height, Exit Only, Less Trim, Hex Key Dogging

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7527-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware.

  • EO = Exit Only, ANSI Function 01 (75 Series Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′ (2' 4" to 3' door width), 4′ x 7′ (2' 10" to 4' door width)
  • Extension rod available for door up to 10’0″ (see part #051811)
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware and fire exit hardware

Brand

Finishes

643e Aged Bronze, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, 313 Duranodic Dark Bronze, US15 (619) Satin Nickel

Device Type

Surface Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified

Usage

Heavy Duty

Fire-Rating

UL/cUL Listed for use on fire doors up to 3 hours

Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available)

Hand

Field Reversible

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Strikes

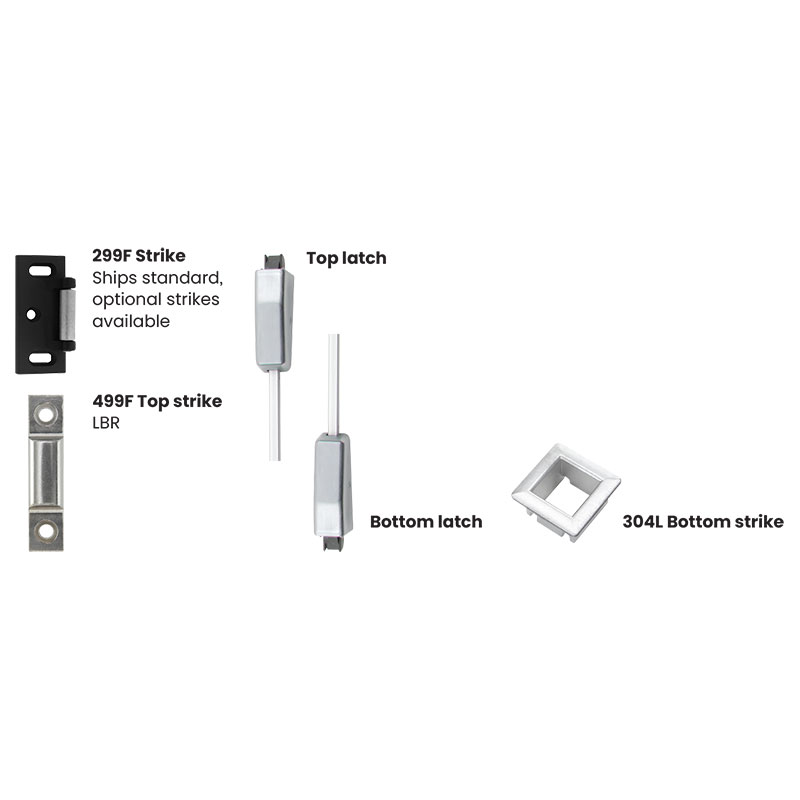

299F Top Strike, 304L Bottom Strike

Dogging Feature

None

Stile Type

Narrow

Center Case

9" x 1-5/8" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4″ Thick Doors

Warranty

3 Year

Buy American Act Compliance

Meets Buy American Act - Made in USA
